Programmable frequency indicator



5725



  • Measures NPN, PNP, Contact, NAMUR, S0, Tacho and TTL sensors
  • Programmable frequency input span of 0.001 Hz to 50 kHz
  • The 5725D has two SPDT relays and one analog output
  • Easy to read 4-digit, 14-segment LED display with scrolling help text
  • Universally powered by 21.6…253 VAC or 19.2… 300 VDC
UL List Dnv Eu Ro Mpa EAC UKCA CE Pr Rohs Guarantee
  1. Resumen + -

  2. Datos técnicos + -

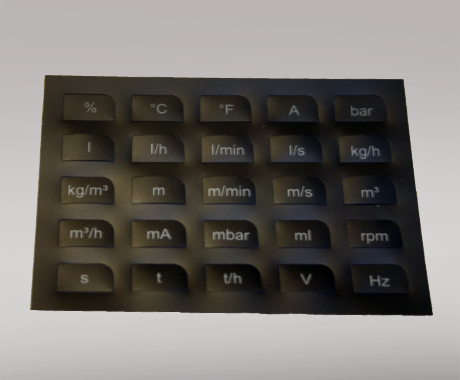

  3. Accessorios + -

  4. Pedido y entrega + -

  5. Porqué elegir PR + -

Application

  • The 5725 measures, scales, and displays frequency signals found in many process speed and flow rate applications.
  • The indicator can measure the period of the frequency, useful for displaying the elapsed time between events.
  • The 5725D has two SPDT setpoint contacts and a 0/4...20 mA output for process control.

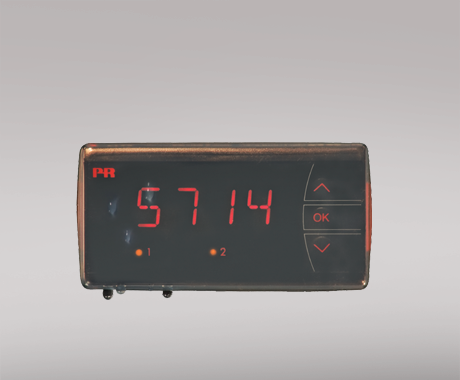

  • The installed display provides IP65 environmental sealing, and additional protection is provided by the optional 8335 splash proof cover.

Technical characteristics

  • 4-digit display with 13.8 mm high, 14-segment LED digits and adjustable decimal point.
  • Indicator is scalable from -1999 to 9999.
  • Scrolling help text makes programming easy.
  • Customizable trigger levels allow measurement of nearly any pulse sensor.
  • Built-in excitation source for measuring NPN, PNP, NAMUR and S0 sensors.
  • Fast response time of 1 cycle + 100 ms, and excellent accuracy of better than 0.05% of selected range.
  • The analog output current on the 5725D can be dampened from 0.1 to 60 seconds, and can handle up to 800 Ohms loop load.
  • The 5725 meets NAMUR NE21 recommendations for high performance in harsh EMC environments.
  • 2.3 kVAC galvanic isolation between input, output and supply.
  • Excellent signal/noise ratio of > 60dB.

Mounting / installation / programming

  • Easy to mount 1/8 DIN (48x96 mm) panel meter with IP65 (type 4X) sealing.
  • Approved for marine applications.
  • Fully push-button programmable.
  • Password-protected.

Ficha técnica y manuales


Ficha técnica

Manuales

Manuales en ruso

Documentación complementaria


Declaración UE de conformidad

Declaración UKCA de conformidad

Configuraciones por defecto

Nota de seguridad

Homologaciones y certificados


Certificado UL

Certificado marina DNV EU-RO

Declaración EAC

Declaración LVD EAC

Metrology Pattern Approval (MPA), Russia

Environmental Conditions

Operating temperature -20°C to +60°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Protection degree (mounted in panel) IP65 / Type 4X
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 48 x 96 x 120 mm
Cut out dimensions 44.5 x 91.5 mm
Weight approx. 230 g
Wire size, pin 11-12 & 41-44, max. 1 x 1.5 mm2/ AWG 30...16 stranded wire
Wire size, others, max. 1 x 2.5 mm2/ AWG 30...12 stranded wire
Terminal connection Spring-cage
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g

Common specifications

Supply

Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Max. required power < 2.8 W (5725A) < 3.6 W (5725D)

Isolation voltage

Isolation voltage, test / working 2.3 kVAC / 250 VAC

Response time

Response time (0...90%, 100...10%) < 1 period + 100 ms
Signal / noise ratio > 60 dB
Accuracy Better than 0.05% of selected range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span

Input specifications

Frequency range, f/I conversion function 0.001 Hz to 50 kHz
Low cut-off frequency 0.0009 Hz (default value)
Max. frequency, with input filter ON 50 Hz
Time range, period time function 999.9 s to 20 μs
Low cut off period time (time-out) 1111 s
Min. period time with input filter ON 20 ms
Input types NAMUR acc. to EN 60947-5-6 Tacho
NPN / PNP
TTL
S0 acc. to DIN 43864
Special voltage
Special current

Output specifications

Display

Display readout -1999...9999 (4 digits)
Decimal point Programmable
Digit height 13.8 mm
Display updating. 2.2 times / s
Display response time, programmable 0.0...60.0 s
Input outside input range is indicated by Explanatory text

Current output

Programmable signal ranges 0...20/4...20/20...0/20...4 mA
Load (@ current output) ≤ 800 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Sensor error indication 0 / 3.5 / 23 mA / none
Output limitation, on 4...20 and 20...4 mA signals 3.8...20.5 mA
Output limitation, on 0...20 and 20...0 mA signals 0...20.5 mA

Relay output

Relay functions Setpoint
Hysteresis, in % / display counts 0...100% / 0...9999
ON and OFF delay 0...3600 s
Power On delay 0...60 s
Sensor error reaction Break / Make / Hold
Max. voltage 250 VAC / VDC
Max. current 2 A
Max. AC power 500 VA
Max. DC current, resistive load > 30 VDC See manual for details

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011

Approvals

c UL us, UL 508 E248256
EU RO MR Type Approval MRA000000Z
