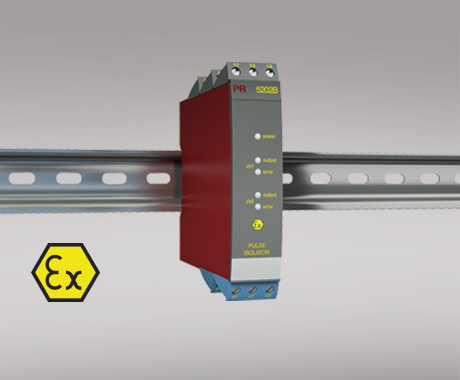

Pulse isolator



5202B



  • 2 channels - 2 or 4 outputs
  • Dual output
  • 5-port 3.75 kVAC galvanic isolation
  • Cable error detection
  • Universal supply by AC or DC
Ex UL List Eac Ex Mpa EAC CE Pr Rohs3 Guarantee
  1. Overview + -

  2. Technical details + -

  3. Accessories + -

  4. Order and delivery + -

  5. Why choose PR + -

Application

  • Pulse isolator with safety barrier for the supply of NAMUR sensors installed in the hazardous area.
  • Pulse isolator with safety barrier for the detection of mechanical contacts installed in the hazardous area.
  • One input signal can be used on two separate outputs.
  • A cable error alarm can be detected on a separate output.

Technical characteristics

  • PR5202B1 and 5202B2 have relays with change-over contacts or open NPN collectors available in the safe area.
  • PR5202B4 has 4 SPST relays, which are activated simultaneously two and two, available in the safe area. Each relay can be programmed to the function N.O. or N.C.
  • Inputs, outputs and supply are floating and galvanically separated.
  • 5202B is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.

Mounting / installation

  • Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.

Note

  • Not suitable for new installations requiring certification to the latest ATEX standards - see ATEX certificate DEMKO 99ATEX127186 and EU Declaration of Conformity for details.

Data sheet & Manuals


Data sheet

Manuals

Manuals in Russian

Approvals & Certificates


ATEX certificate

SIL certificate

UL certificate

EAC declaration

EAC Ex certificate

Metrology Pattern Approval (MPA), Russia

Supplementary documentation


EU Declaration of Conformity

FMEDA report

PR default configurations

Safety note


Safety note

Environmental Conditions

Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 230 g
Wire size 1 x 2.5 mm2 stranded wire
Screw terminal torque 0.5 Nm

Common specifications

Supply

Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4
Internal power dissipation ≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4

Isolation voltage

Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140

Auxiliary supplies

NAMUR supply 8 VDC / 8 mA
EMC immunity influence < ±0.5%
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1%

Input specifications

Sensor types NAMUR according to EN 60947-5-6 / mechanical contact
Frequency range 0...5 kHz
Pulse length > 0.1 ms
Input resistance 1 kΩ
Trig level, signal < 1.2 mA, > 2.1 mA
Trig level, cable fault < 0.1 mA, > 6.5 mA

Output specifications

Relay output

Max. switching frequency 20 Hz
Max. voltage 250 VRMS
Max. current 2 AAC
Max. AC power 100 VA
Max. load at 24 VDC 1 A

NPN output

Max. switching frequency 5 kHz
Min. pulse length > 0.1 ms
Max. load, current / voltage 80 mA / 30 VDC
Voltage drop at 25 mA / 80 mA < 0.75 VDC / < 2.5 VDC

Observed authority requirements

EMC 2014/30/EU
LVD 2014/35/EU
EAC TR-CU 020/2011

Approvals

ATEX DEMKO 99ATEX127186, II (1) GD [EEx ia] IIC
c UL us, UL 913 E233311
EAC Ex EAEU KZ 7500361.01.01.08756
SIL Hardware assessed for use in SIL applications
