2-wire programmable transmitter



5131B



  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3.75 kVAC galvanic isolation
  • 4...20 mA loop output
  • 1- and 2-channel versions
  • ATEX Ex / I.S. version
  • DIN rail mounting
  1. Panoramica + -

  2. Dati tecnici + -

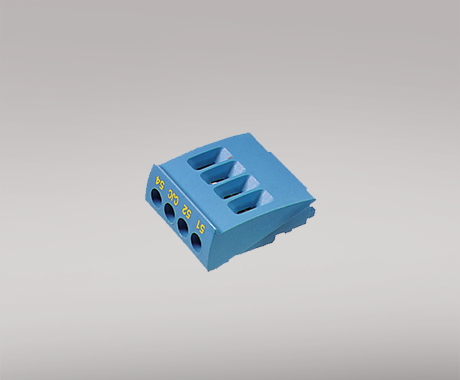

  3. Accessori + -

  4. Ordine e consegna + -

  5. Perchè scegliere PR + -

Advanced features

  • The 5131 transmitter can be configured with a standard PC and the Loop Link communications unit.

Application

  • Independent channel jumper selectable inputs for current/voltage or temperature.
  • Current input programmable in range the 0...100 mA and voltage inputs in the range 0...250 VDC.
  • Linearized, electronic temperature measurement with RTD or TC sensor.
  • Conversion of linear resistance variation to a standard analog current / voltage signal, for example from solenoids and butterfly valves or linear movements with attached potentiometer.
  • 4- or 3-wire connection with automatic cable compensation or 2-wire connection with programmable cable compensation.
  • Configurable sensor error detection including NAMUR NE43.

Technical characteristics

  • The 2-channel version has full galvanic isolation between the channels.
  • Separation of circuits in PELV/SELV installations.
  • I.S. barrier for temperature sensors, potentiometers and current / voltage signals.

Scheda tecnica & manuali


Scheda tecnica

Manuali

Manuali in russo

Approvazioni & certificati


Certificato Ex

Dichiarazione EAC

Certificato EAC Ex

Metrology Pattern Approval (MPA), Russia

Documentazione supplementare


Dichiarazione UE di conformità

Environmental Conditions

Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 195 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm2 AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm

Common specifications

Supply

Supply voltage 7.5...35 VDC
Fuse 50 mA SB / 250 VAC

Isolation voltage

Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140

Response time

Temperature input, programmable (0...90%, 100...10%) 400 ms...60 s
mA / V input (programmable) 250 ms...60 s
Programming Loop Link
Signal / noise ratio Min. 60 dB (0...100 kHz)
Updating time 115 ms (temperature input) 75 ms (mA / V / mV input)
Signal dynamics, input 22 bit
Signal dynamics, output 16 bit
Effect of supply voltage change < 0.005% of span / VDC
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span

Input specifications

Common input specifications

Max. offset 50% of selected max. value

RTD input

RTD type Pt100, Ni100, lin. R
Cable resistance per wire 10 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes

TC input

Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) < ±1.0°C
Sensor error current Nom. 30 μA
Sensor error detection Yes

Current input

Measurement range 0...100 mA
Min. measurement range (span) 4 mA
Input resistance: Supplied unit Nom. 10 Ω + PTC 10 Ω
Input resistance: Non-supplied unit RSHUNT = ∞, VDROP < 6 V

mV input

Measurement range -150...+150 mV

Voltage input

Measurement range 0...250 VDC
Min. measurement range (span) 5 mV
Input resistance Nom. 10 MΩ (≤ 2.5 VDC) Nom. 5 MΩ (> 2.5 VDC)
Nom. 10 MΩ (mV input)

Output specifications

Current output

Signal range 4…20 mA
Min. signal range 10 mA
Load (@ current output) ≤ (Vsupply -7.5)/0.023 [Ω]
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Sensor error indication Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
of span = of the presently selected range

Observed authority requirements

EMC 2014/30/EU
LVD 2014/35/EU
ATEX 2014/34/EU
RoHS 2011/65/EU
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011

Approvals

ATEX DEMKO 99ATEX124572, II (1) GD [EEx ia] IIC
EAC Ex RU C-DK.HA65.B.00355/19
