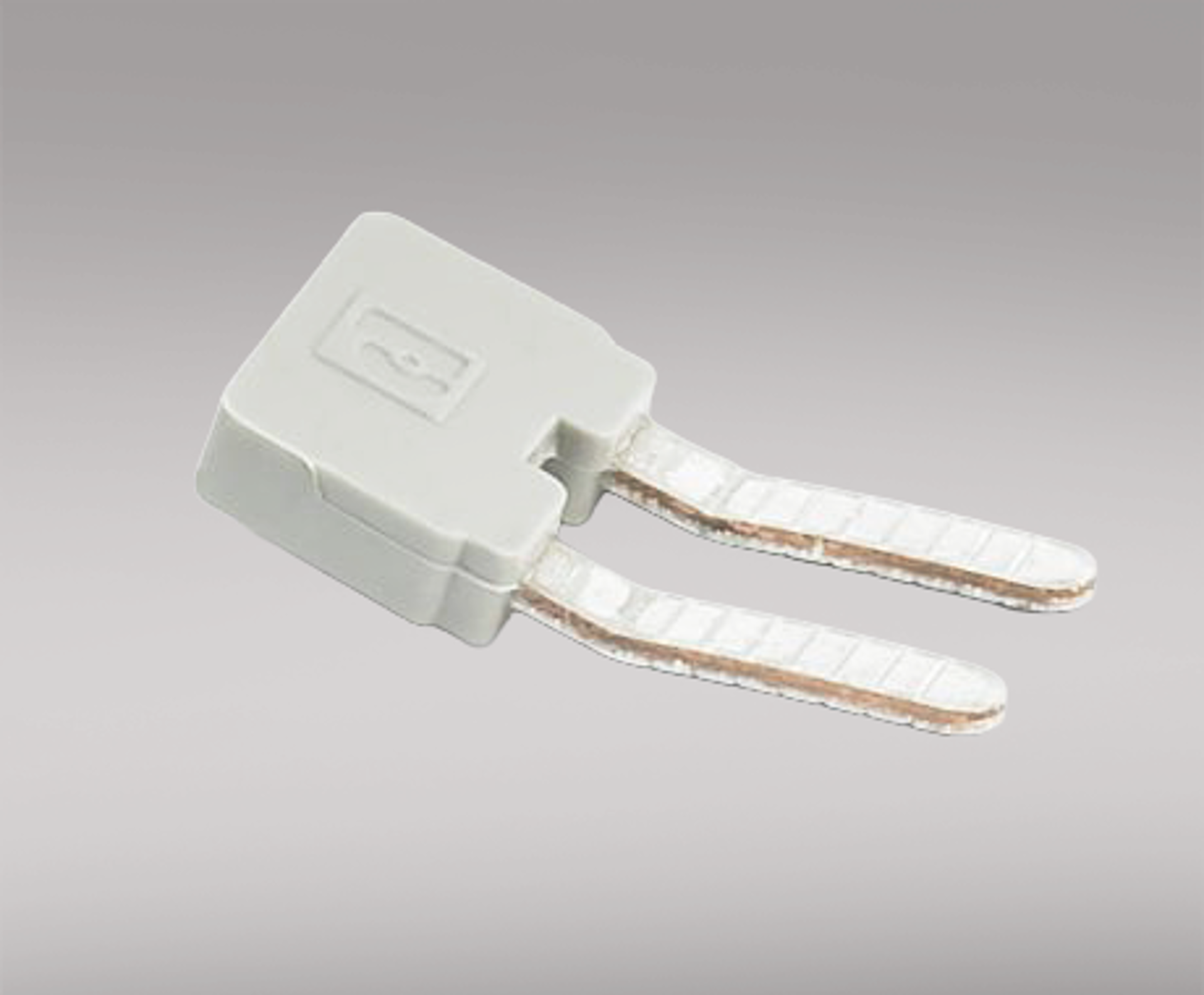

Short-circuit bridge



ST9106-01



  • For 9106 output
  1. Overview + -


Application

  • When using the digital output of the 4511 and no load on the output terminals of the 9106, the output terminals need to be shorted to make sure that the 9106 does not overheat.
  • A short-circuit bridge will be mounted from factory, but only when you order the part together with the 9106. Remember to order 2 short-circuit bridges if you order the 2-channel version of 9106.

Data sheet & Manuals


Data sheet
