Signal conditioning devices

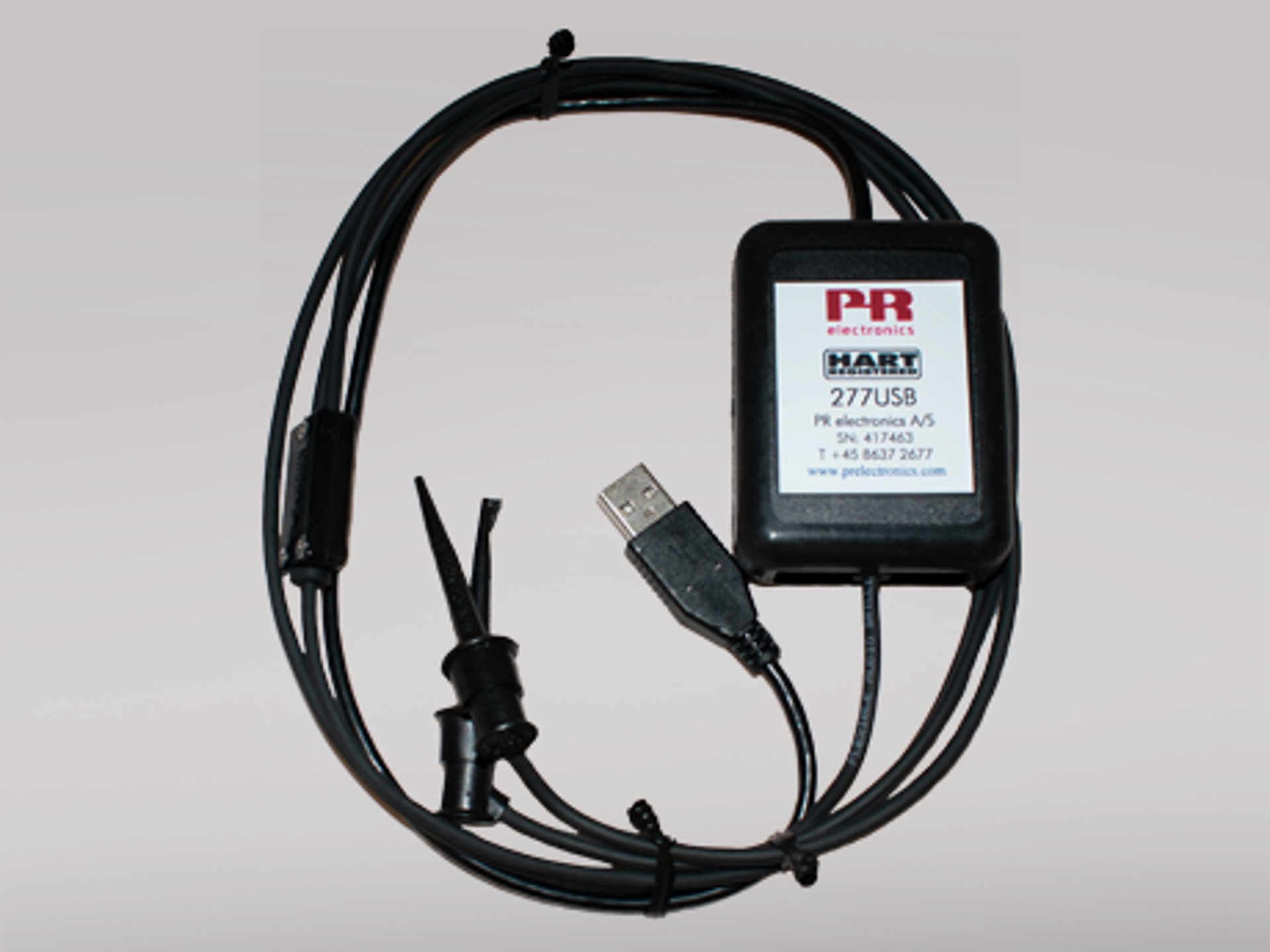

277

ProComSol USB HART modem

Easy installation
USB 1.1 and 2.0 compatible
Draws power from USB port

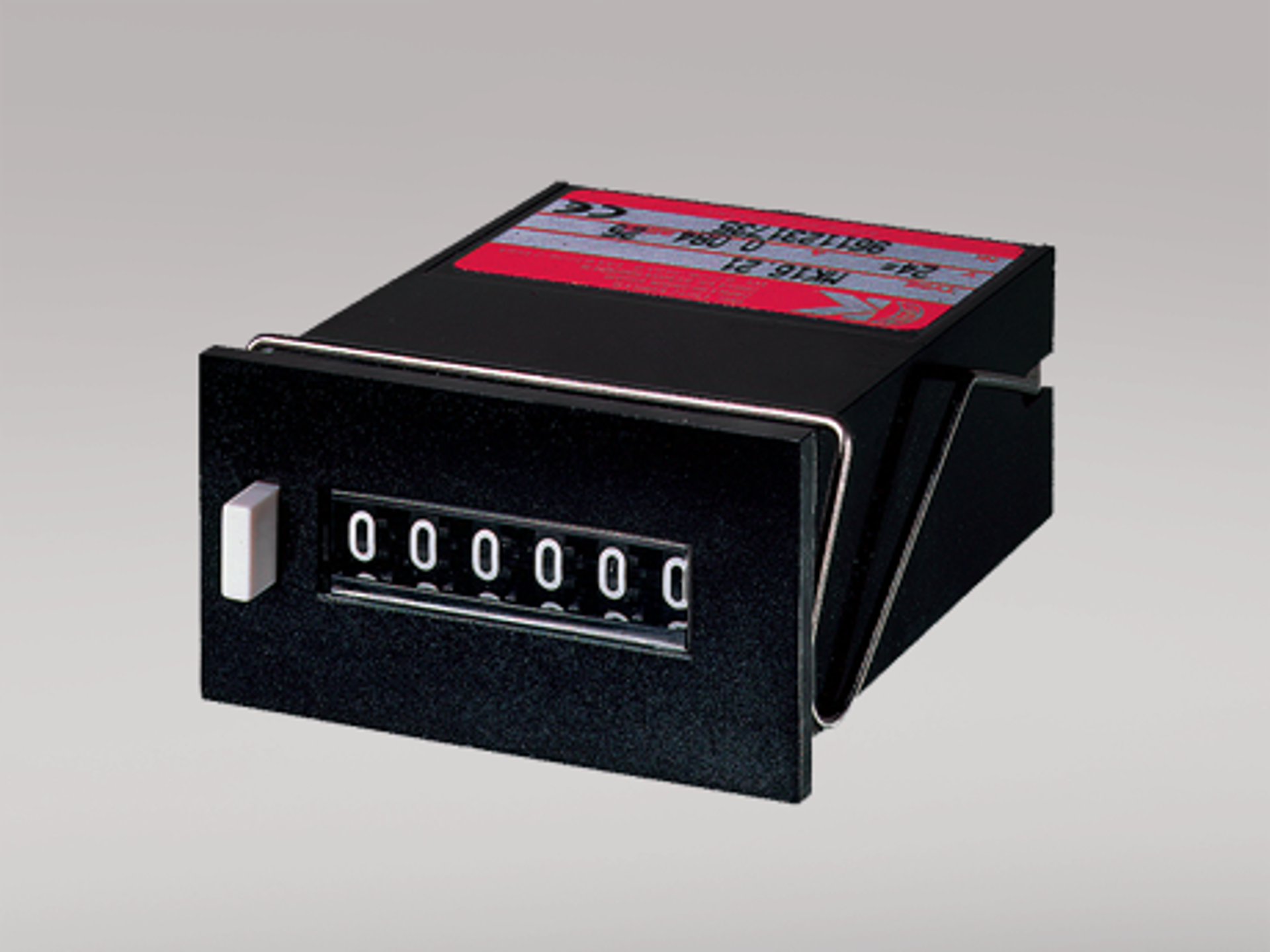

3400T

Electromechanical counter

Supply voltage 24 VDC
6 digits
Reset button in the counter front

4801

Modbus gateway

Modbus RTU to Ethernet Modbus TCP/IP gateway
PPS app communication gateway
Includes 200 mm RJ45 to SUB-D9 cable

4802

Modbus RTU/Profinet Gateway

From Modbus to PLC via Profinet
For serial RS-232/422/485 devices

5824

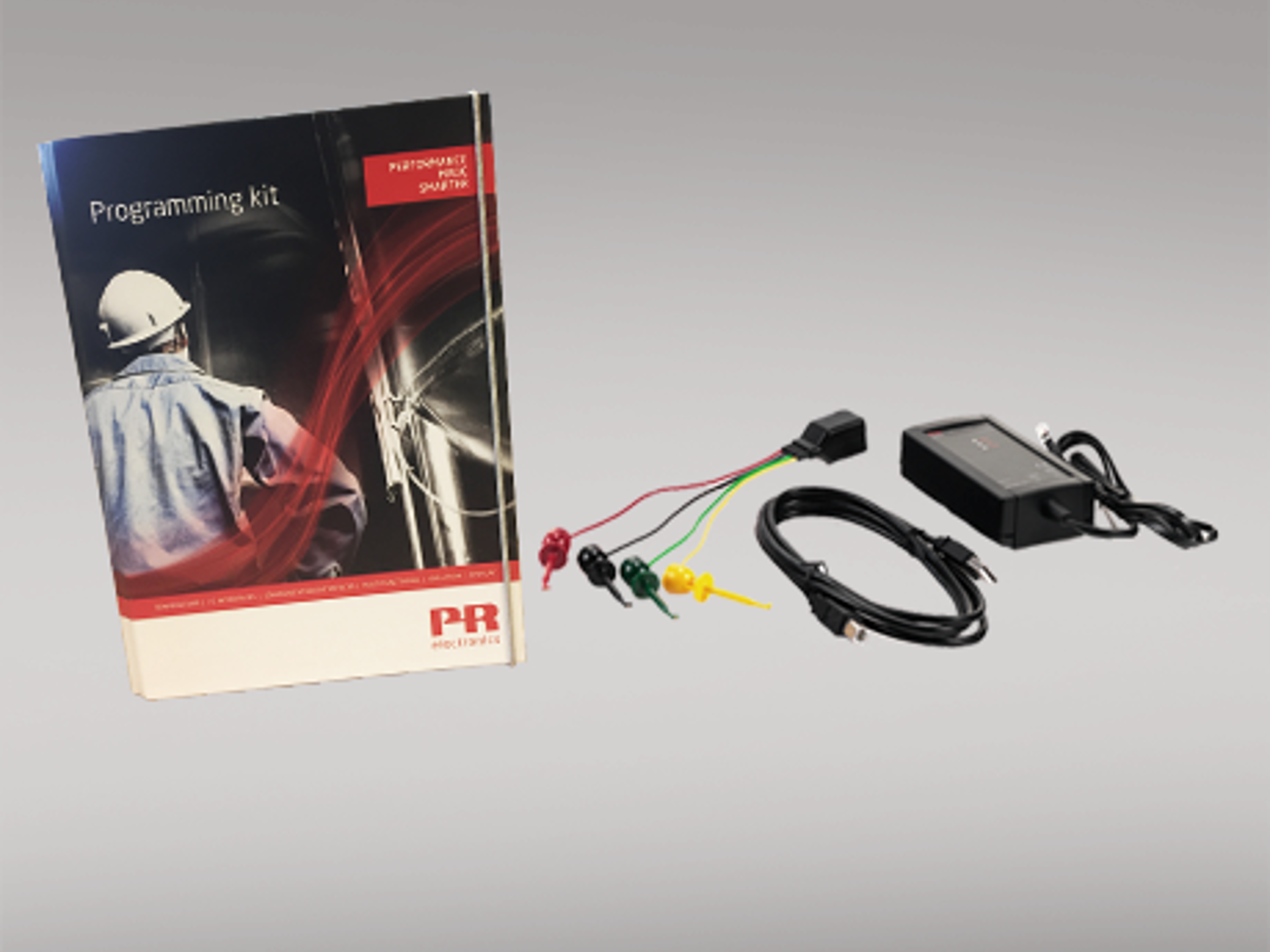

5909

Loop Link communications interface

USB connection
For PReset version 5.0 or higher

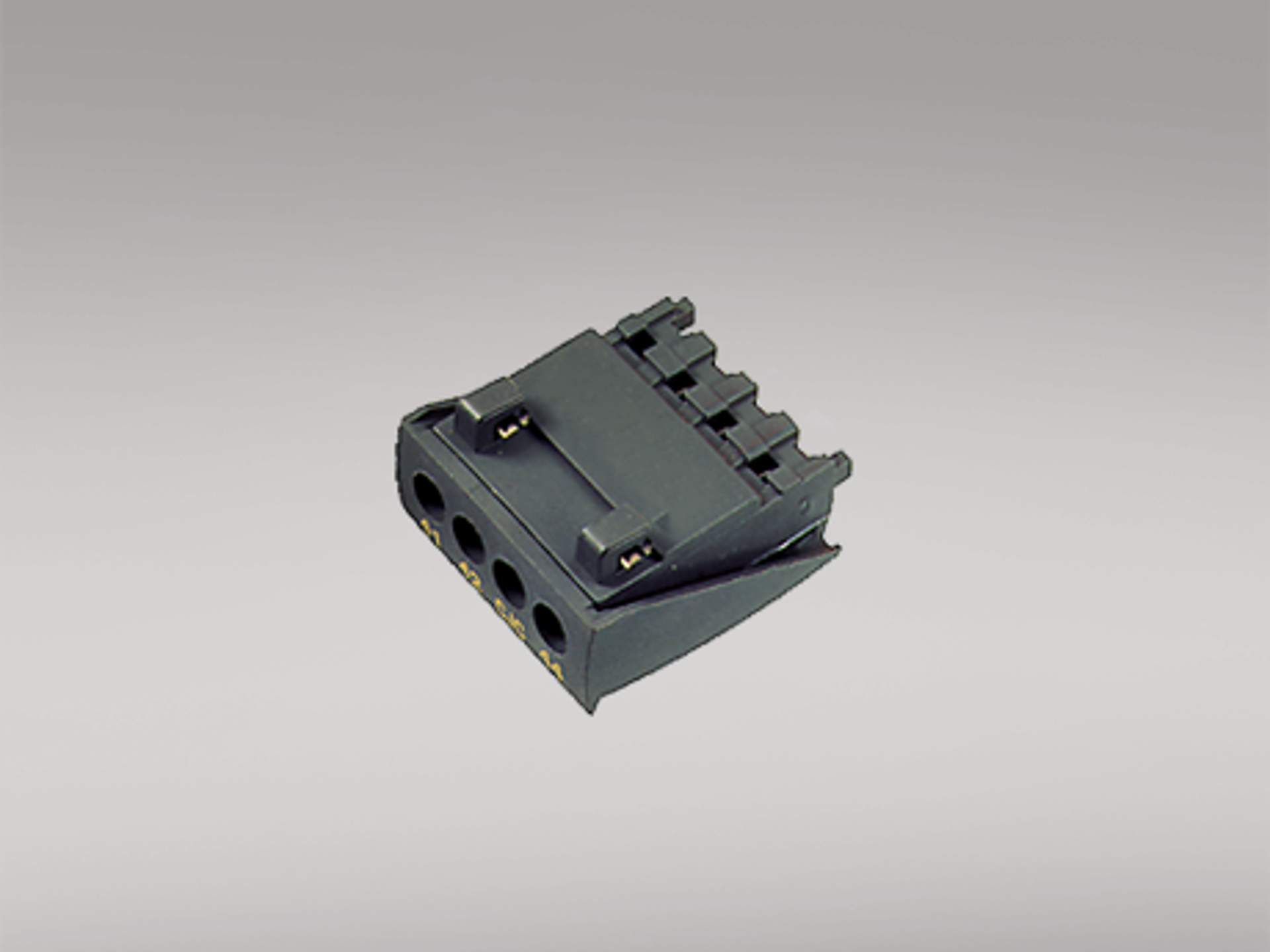

5910

CJC connector

For channel 1

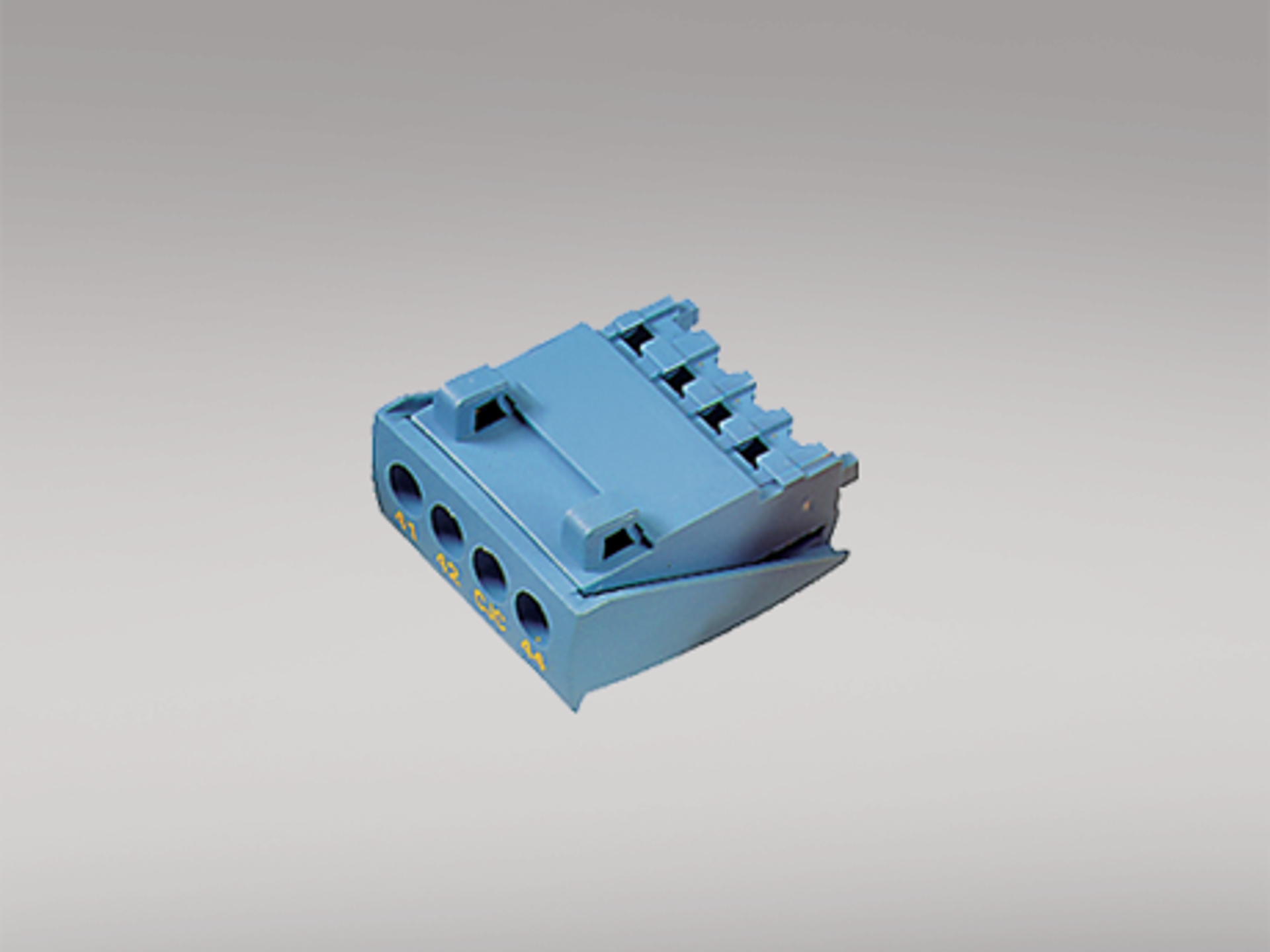

5910Ex

CJC connector

For I.S. / Ex devices
For channel 1

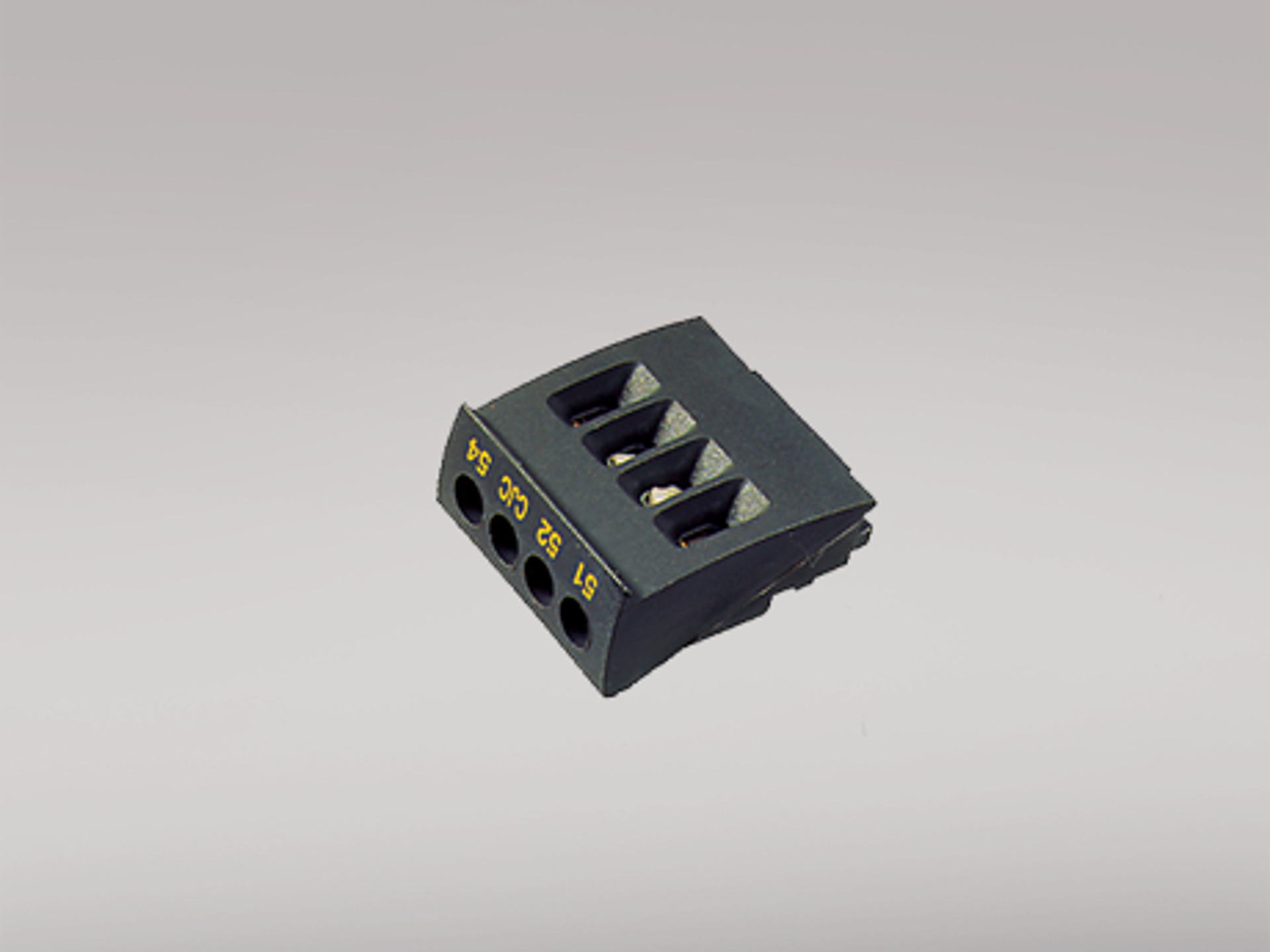

5913

CJC connector

For channel 2

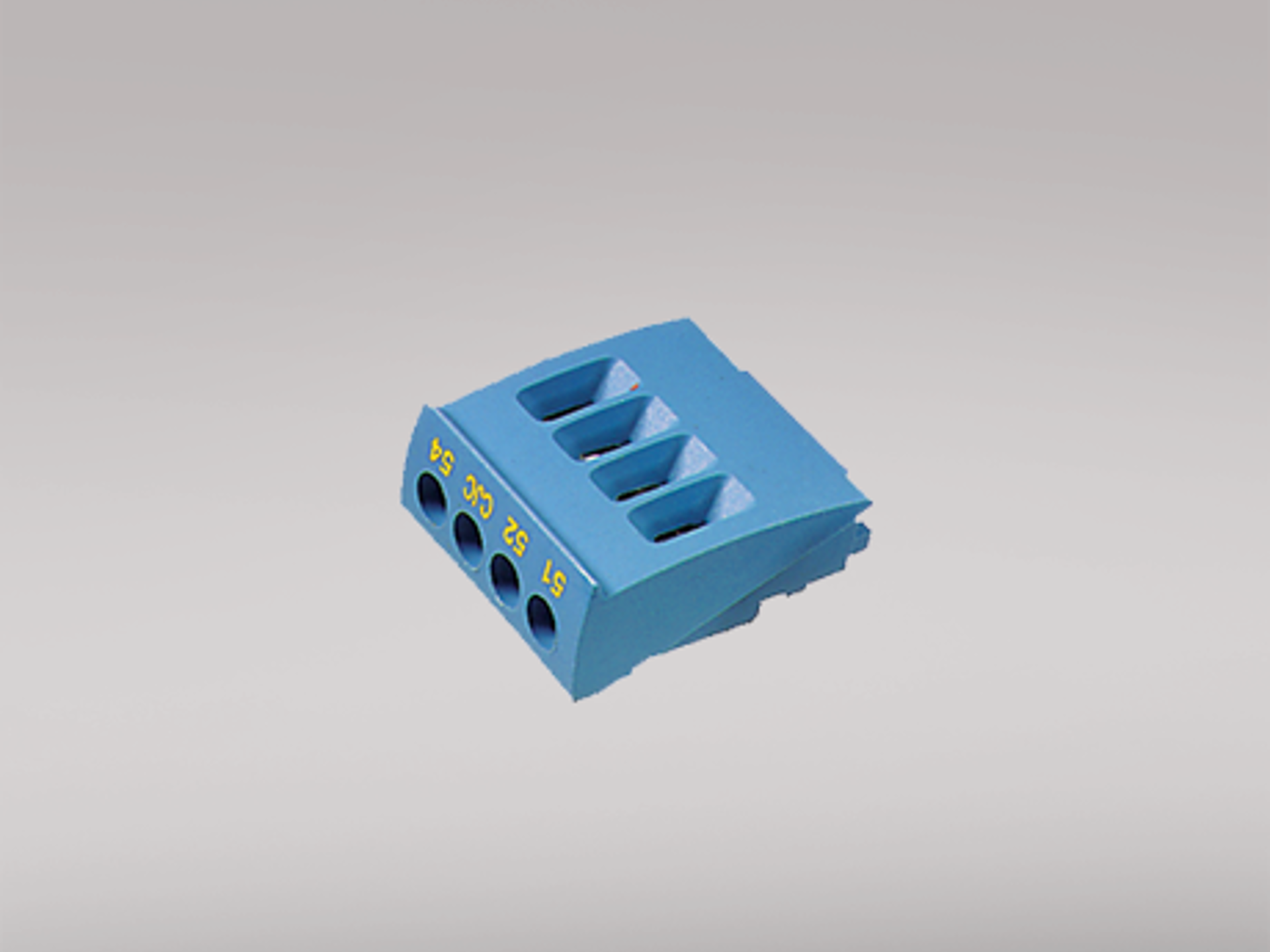

5913Ex

CJC connector

For I.S. / Ex devices
For channel 2

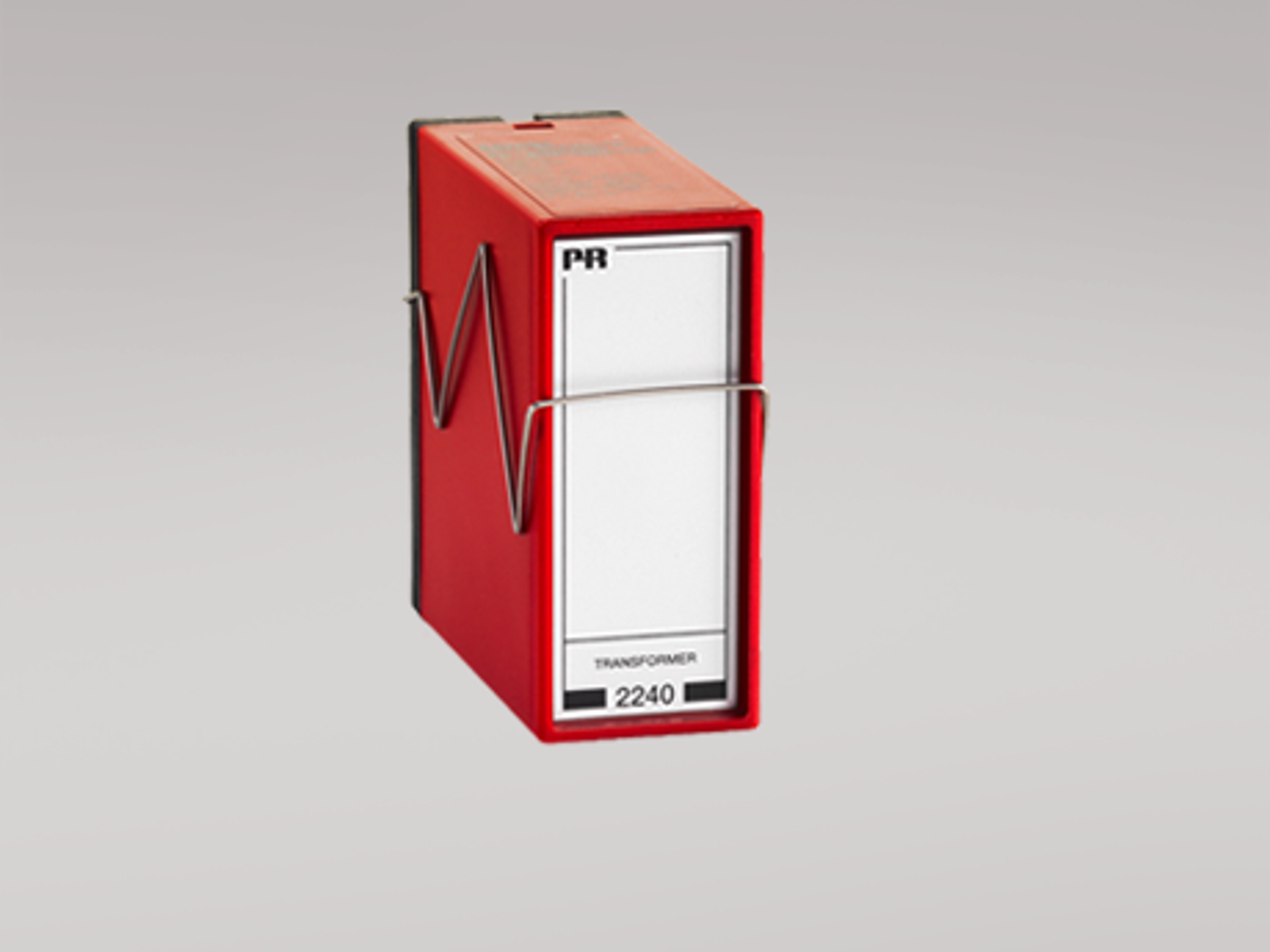

7002

Spring clip

Additional safety catch for system 2200 devices

7005

Shunt resistor 0.1 Ω

0.1 Ω, ±1%, 20 W
Max. working voltage:
550 Volt
Connection: solder terminals

7006

Shunt resistor 1 Ω

1 Ω, ±1%, 20 W
Max. working voltage:
550 Volt
Connection: solder terminals

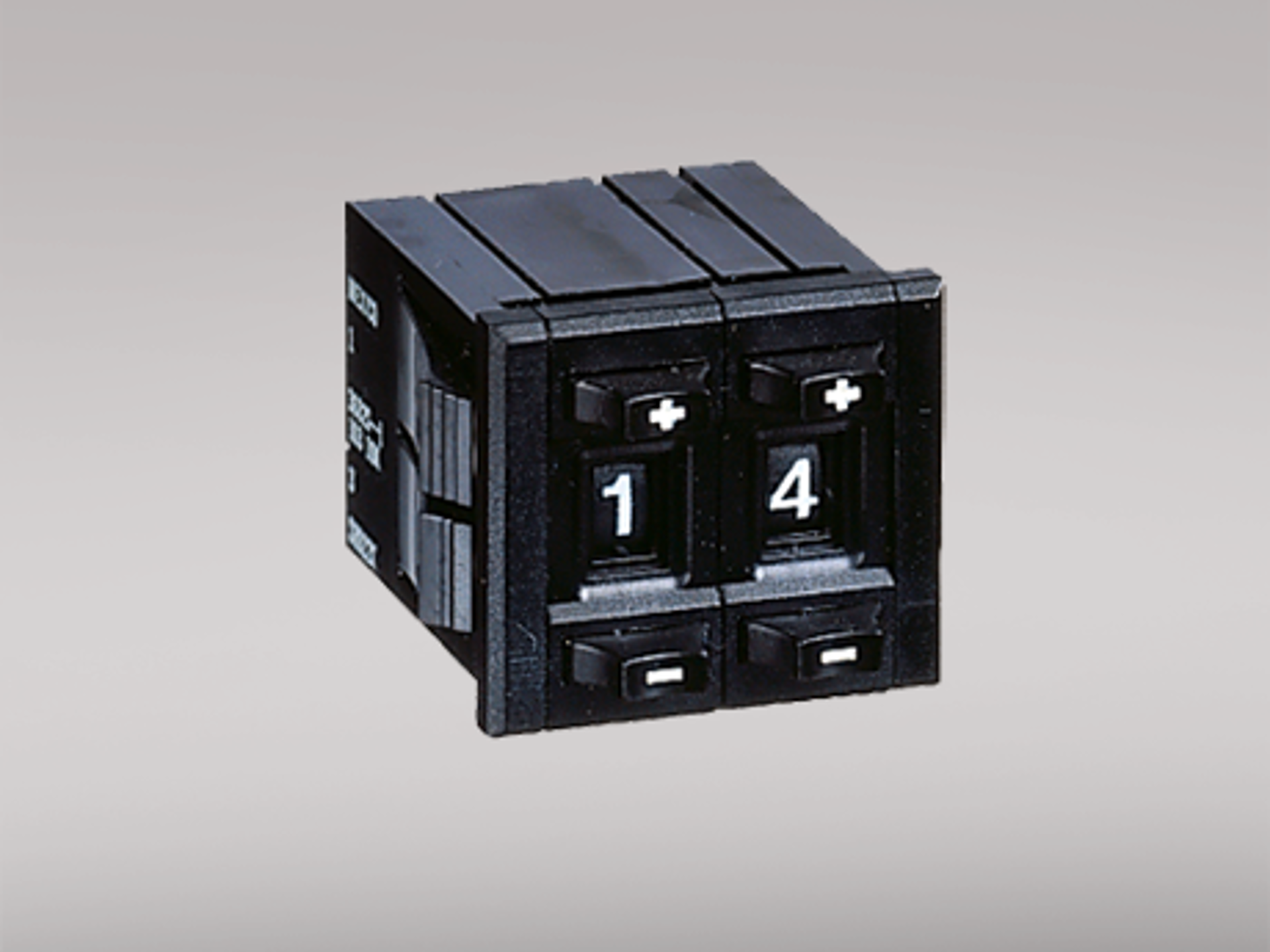

7007

2-digit digital potentiometer

10 kΩ, ±3%, 2 W
Connection: solder terminals

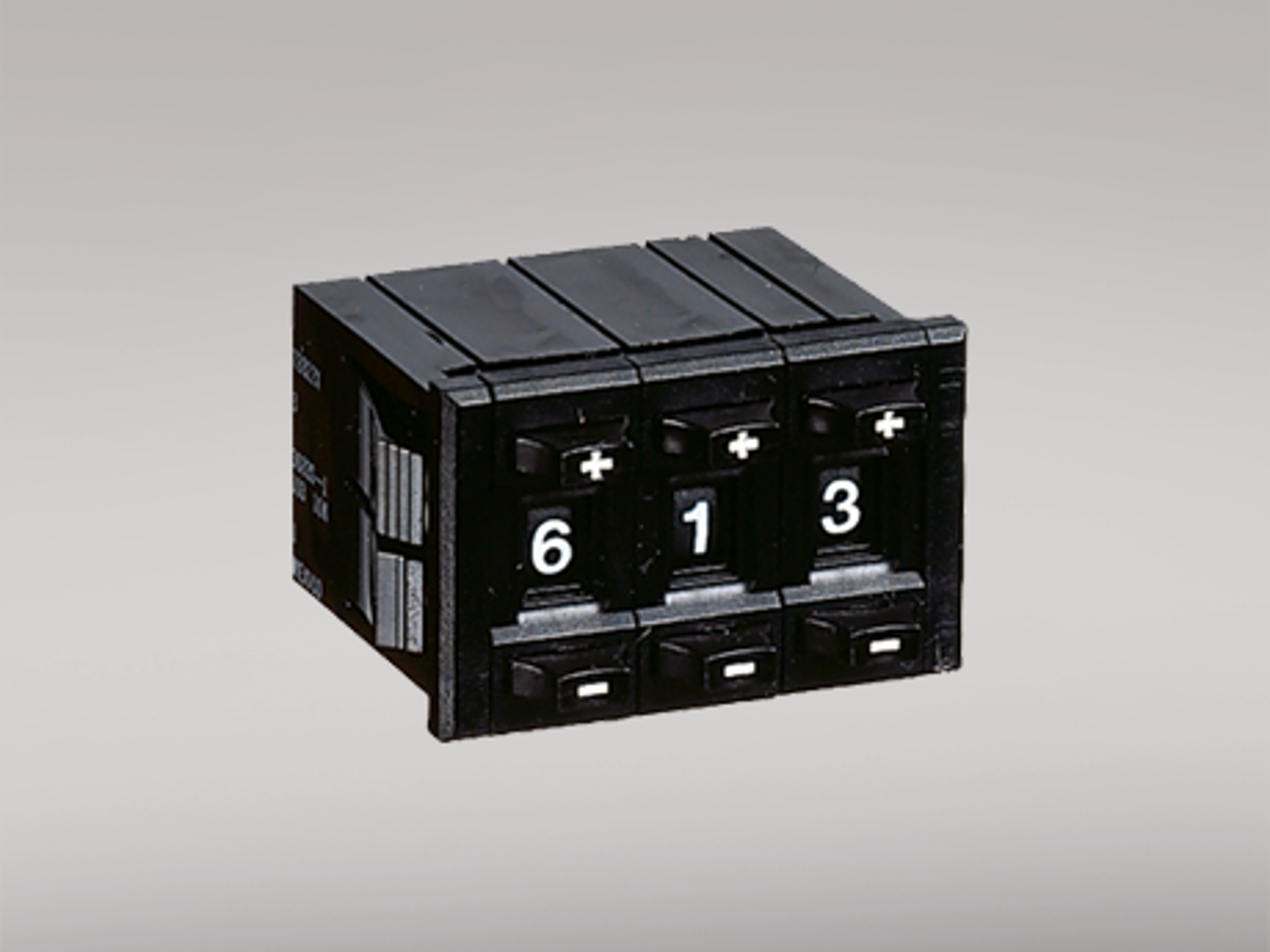

7008

3-digit digital potentiometer

10 kΩ, ±3%, 2 W
Connection: solder terminals

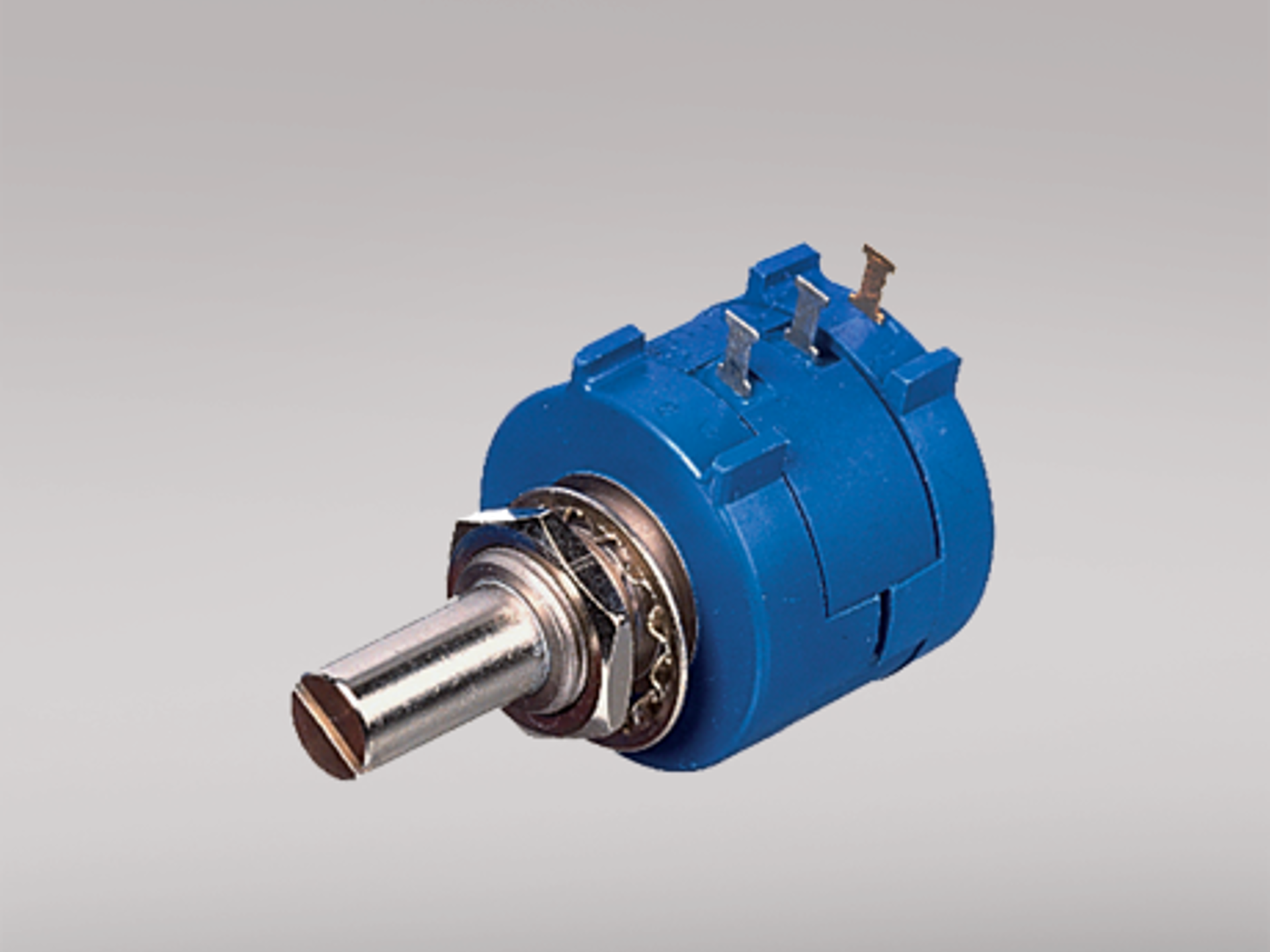

7009

10-turn potentiometer, 200 Ω

200 Ω, ±5%, 2 W
Connection: solder terminals

7010

10-turn potentiometer, 20 kΩ

20 kΩ, ±5%, 2 W
Connection: solder terminals

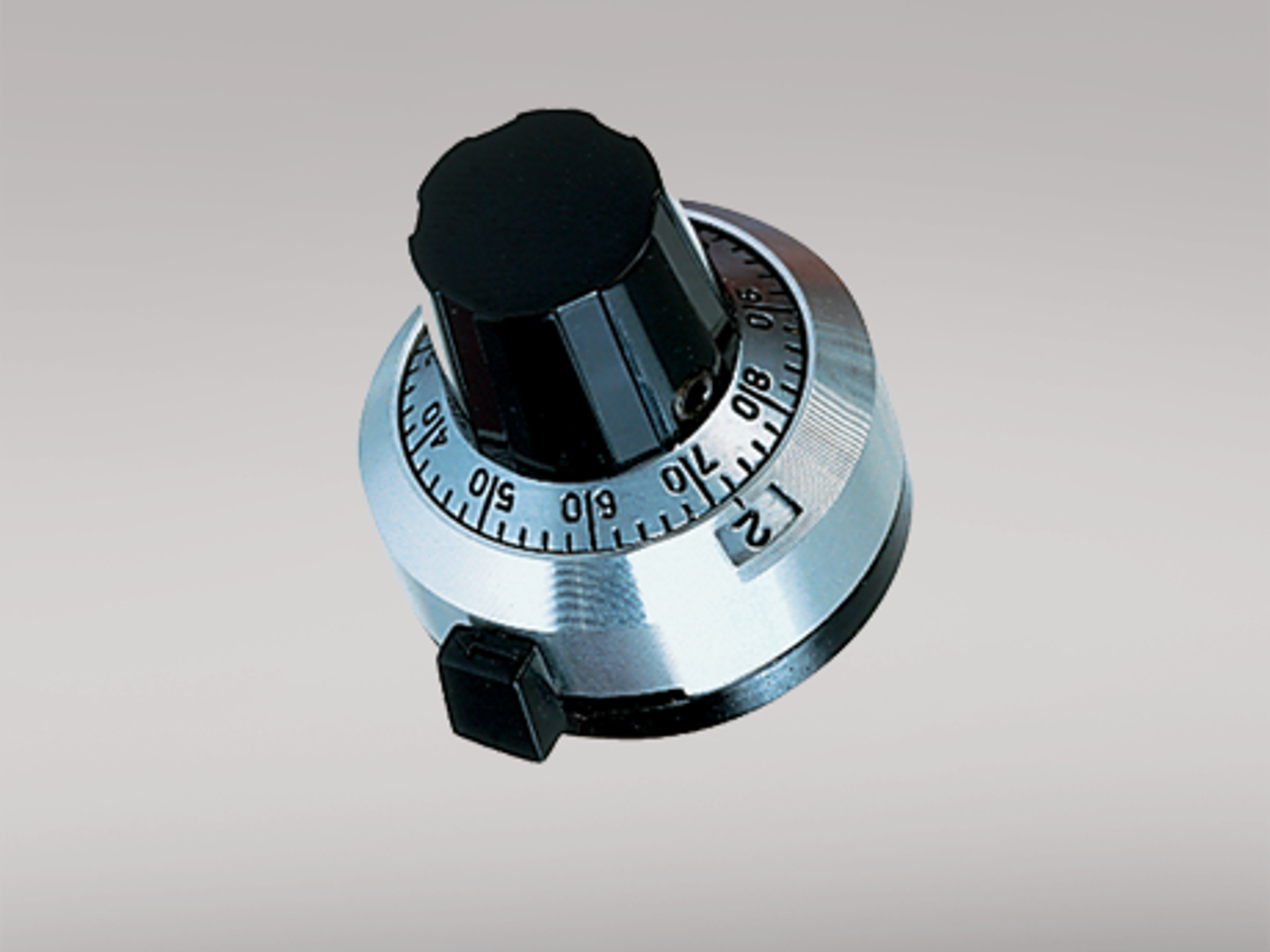

7011

Dial for 10-turn potentiometer

Resolution: 0.2%

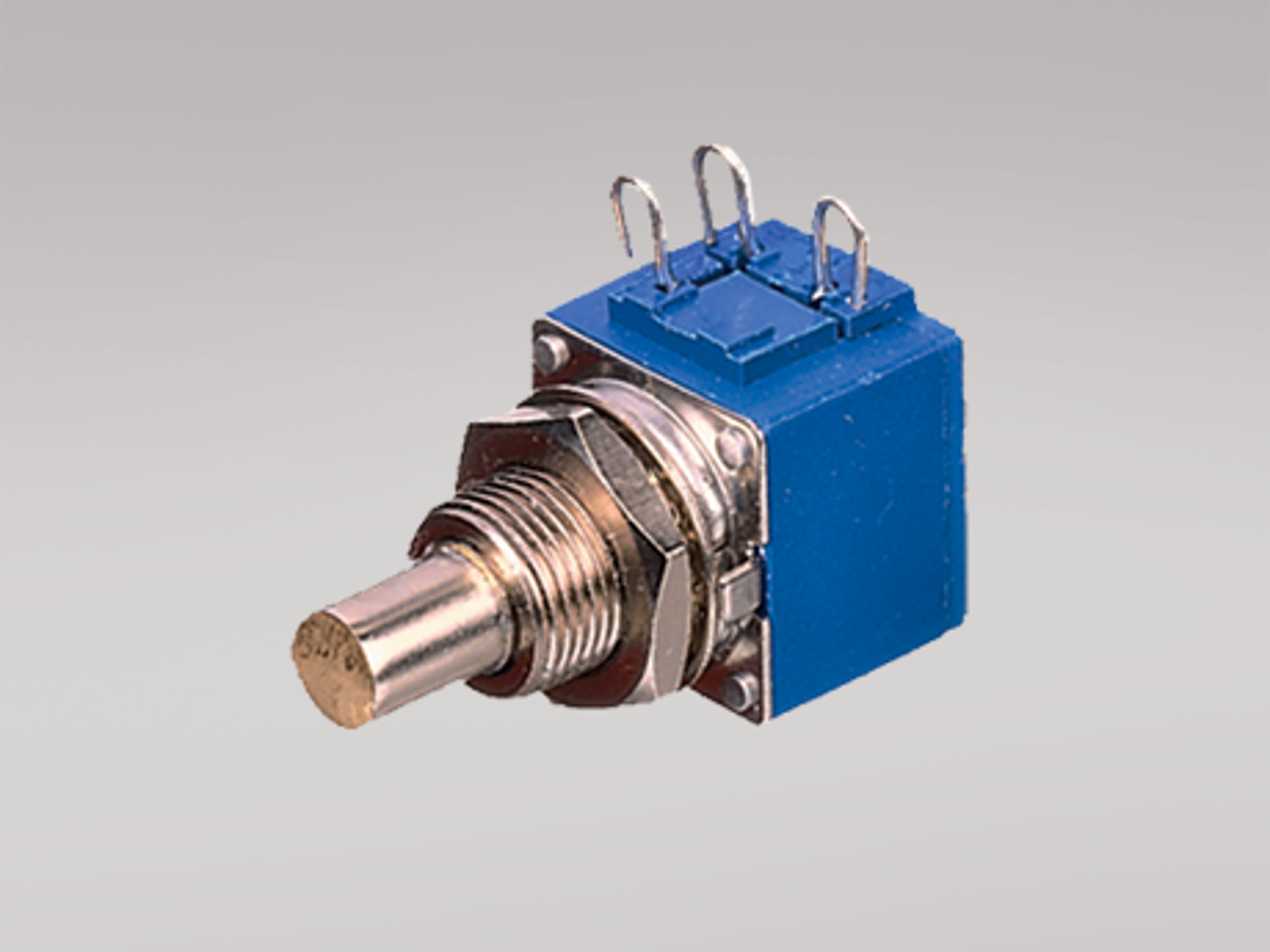

7012

1-turn potentiometer, 1 kΩ

1 kΩ, ±10%, 2 W
Connection: solder terminals

7014

Shunt resistor 0.5 Ω

0.5 Ω, ±1%, 20 W
Max. working voltage:
550 Volt
Connection: solder terminals

7015

1-turn potentiometer, 10 kΩ

10 kΩ, ±10%, 2 W
Connection: solder terminals

7016

1-turn potentiometer, 100 kΩ

100 kΩ, ±10%, 2 W
Connection: solder terminals

7020

Knob for 1-turn potentiometer

For potentiometers type 7012, 7015 and 7016

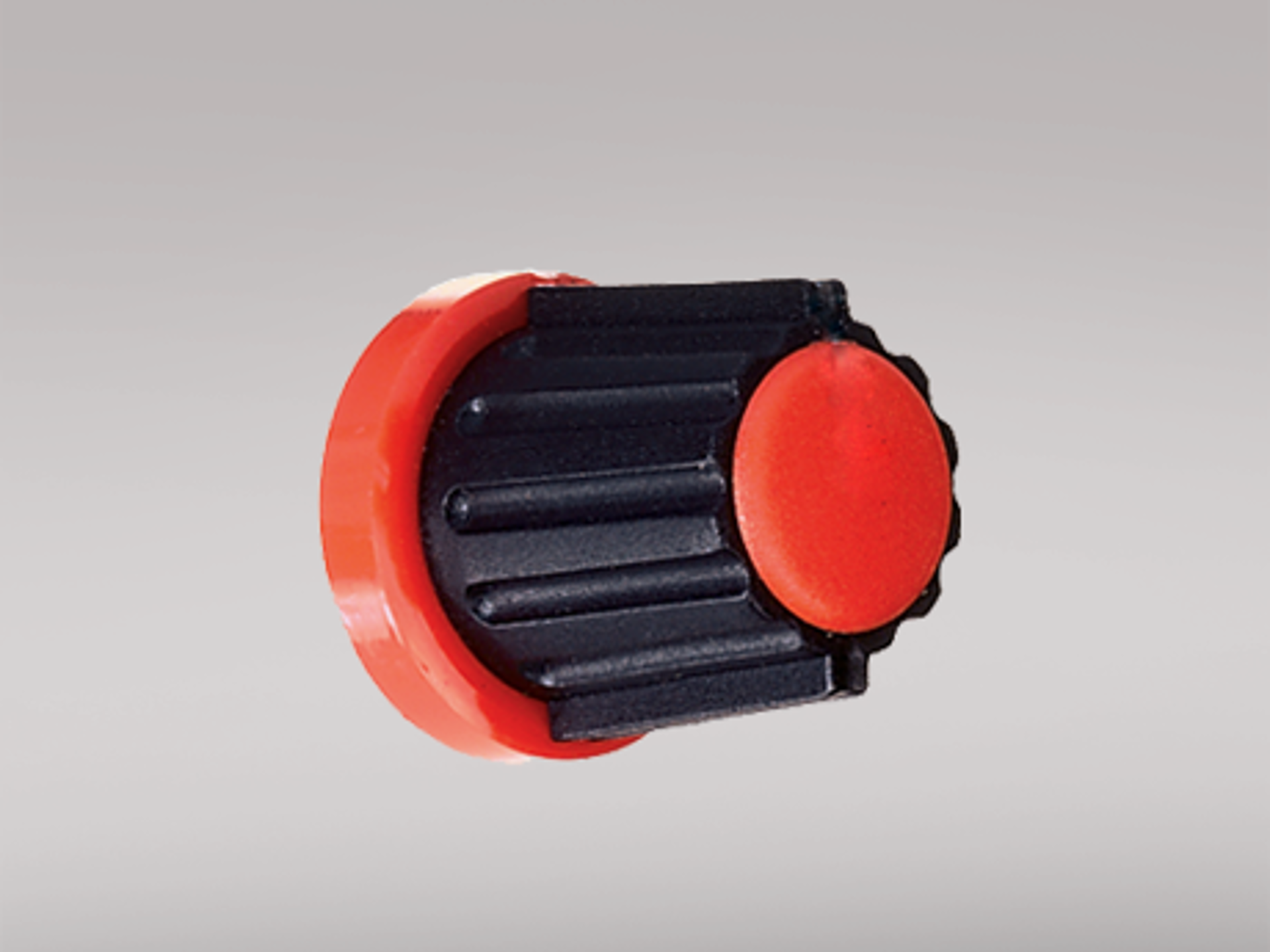

7020A

Knob for 10-turn potentiometer

For potentiometers type 7009, 7010 and 7028

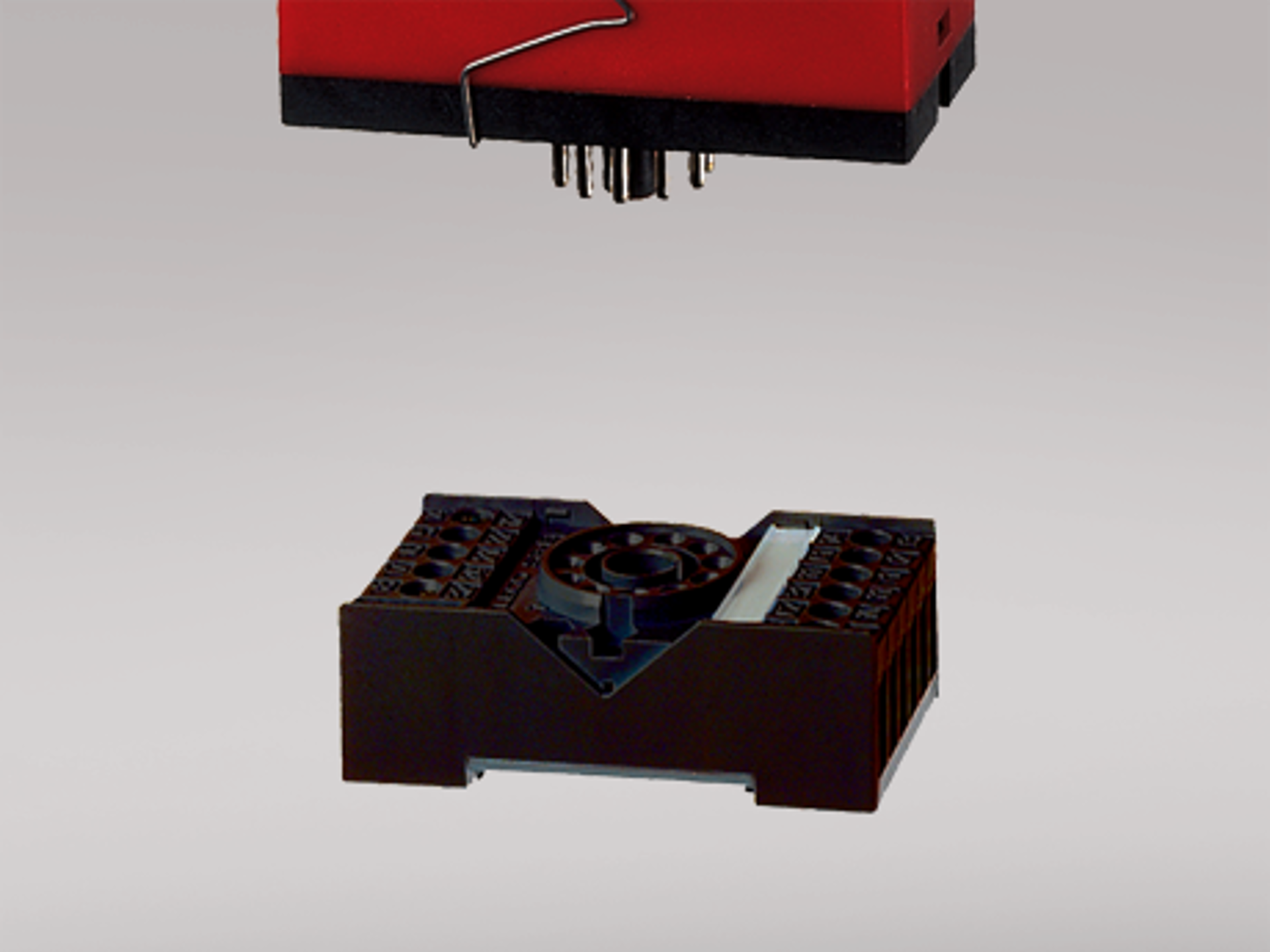

7023

11-pole relay socket

Screw terminals
Coding option

7024

Code ring and code pin

For 11-pole relay socket

7028

10-turn potentiometer, 2 kΩ

2 kΩ, ±5%, 2 W
Connection: solder terminals

7029

Shunt resistor 0.2 Ω

0.2 Ω, ±1%, 20 W
Max. working voltage:
550 Volt
Connection: solder terminals

7030

Shunt resistor 0.1 Ω for DIN rail mounting

Max. voltage: 500 V (between ground and terminals)
Connection: screw terminals

7031

Label sheet with engineering units

For displays in the 5700 series
25 different units

8201L

Power wire

Supply pin 31 + 33, left

8201R

Power wire

Supply pin 31 + 33, right

8202L

Power wire

Supply pin 31 + 32, left

8202R

Power wire

Supply pin 31 + 32, right

8335

Splash-proof cover

For displays type 5714, 5715 and 5725

8341

Inductive proximity sensor

NAMUR DIN 19234
Switching distance: 5 mm
Max. frequency: 500 Hz

8342

Inductive proximity sensor

NAMUR DIN 19234
Switching distance: 2 mm
Max. frequency: 800 Hz

8343

Inductive proximity sensor

NPN
Switching distance: 5 mm
Max. frequency: 500 Hz

8344

Inductive proximity sensor

NPN
Switching distance: 2 mm
Max. frequency: 800 Hz

8421

DIN rail fitting

For head-mount transmitters

8440

PReset USB stick

PReset software for 5909 Loop Link

8501

Field enclosure

Cut-out dimensions fit PR displays
Protection degree IP65
Easy mounting on wall or panel

8509

Interface cable

M12 interface cable for 5909 Loop Link

8510

8 unit 4511 Modbus cable

For Modbus daisy chain wiring, 8 devices
Male connector in both ends

8511

4511 Y-splitter Modbus cable

For Modbus daisy chain wiring, 1 device

8513

RJ45 Modbus termination

120 ohm Modbus segment line termination

8514

3 X RJ45 female Y-splitter

Modbus line splitter
One signal in - two signals out

8515

RJ45 female to female cable adapter

Connection of two male cable lines

8516

RJ45 female to female shielded cable adapter

Connection of two male cable lines
Metal housing

8517

3 x RJ45 female shielded Y-splitter

Modbus line splitter
One signal in - two signals out

8550

7501 Blind plug, aluminum

M20 incl. silicone O-ring
For aluminum housing

8550-F

7501 Blind plug, aluminum

M20 incl. FKM O-ring
For aluminum housing

8550-S

7501 Blind plug, stainless

M20 incl. silicone O-ring
For stainless steel housing

8550-SF

7501 Blind plug, stainless

M20 incl. FKM O-ring
For stainless steel housing

8551

7501 Blind plug, aluminum

½NPT
For aluminum housing

8551-S

7501 Blind plug, stainless

½NPT
For stainless steel housing

8552

Pipe-mounting bracket for 7501

P5-B-N (1.5"-2")
Stainless steel

8555

Display spare part with LOI 7501

8556

Display spare part without LOI for 7501

8557

Bracket spare part for display and transmitter for 7501

8558

Bracket spare part for transmitter only for 7501

9400_1

Power rail 15 mm profile

Different lengths
Mounting and supply of devices in the 3000 and 9000 series

9400_2

Power rail 7.5 mm profile

Different lengths
Mounting and supply of devices in the 3000 and 9000 series

9402

Extra end covers for power rail

9404

Module stop for rail

Accessories

Complement your devices with a full range of accessories.
