Communication interfaces
What is a communications interface?
PR electronics' communication interfaces provide enhanced access to your process variables, featuring a unique detachable operator interface concept for easy configuration, advanced diagnostics, and improved process visibility. Whether you need local access at the device or remote monitoring via modern protocols like Bluetooth or Modbus, our communication interfaces bring you closer to your process, ensuring you have the data you need, when you need it.
As industrial processes evolve, the demand for real-time data access and seamless integration with control systems like DCS, SCADA, and PLCs has become critical. Our communication interfaces are designed to meet these modern demands, offering flexible connectivity options and full compatibility with our System 4000 and 9000 series devices. This ensures that your operation is not only efficient today but also prepared for the future of industrial automation.
If you require assistance in selecting the device that is just right for your application, please do not hesitate to contact us.
- Programming display for system 4000 and 9000 devices
- Modbus RTU protocol interface over RS-485
- Display for system 4000 and 9000 devices
- IOS & Android compatible Bluetooth version 4.2/4.1/4.0
- Mounting in Zone 2 / Div. 2
- Docking station for PR 4500 displays
- Handheld adaptor for programming 3114 / 3225
- Upload / download tool on selected 4000 / 9000 units
- Programming display for system 4000 and 9000 devices
- Monitor process value and status from the built-in display
- Mounting in Zone 2 / Div. 2
Local Access: Display and programming at your fingertips
For applications requiring immediate, on-site process monitoring and adjustment, the PR 4510 display/programming front offers an intuitive solution. This local operator interface allows for real-time viewing of process values and device status directly from a built-in display, enabling quick and easy front-panel programming. With approvals for mounting in Zone 2 / Div. 2 hazardous areas, the 4510 ensures that you can perform quick troubleshooting and configuration without needing external tools, which helps to maximize operator convenience and reduce downtime. For even greater flexibility, the 4510 can be paired with the PR 4590 ConfigMate, a docking station that provides handheld programming and configuration capabilities.
Modbus connectivity: Integrating with industrial networks

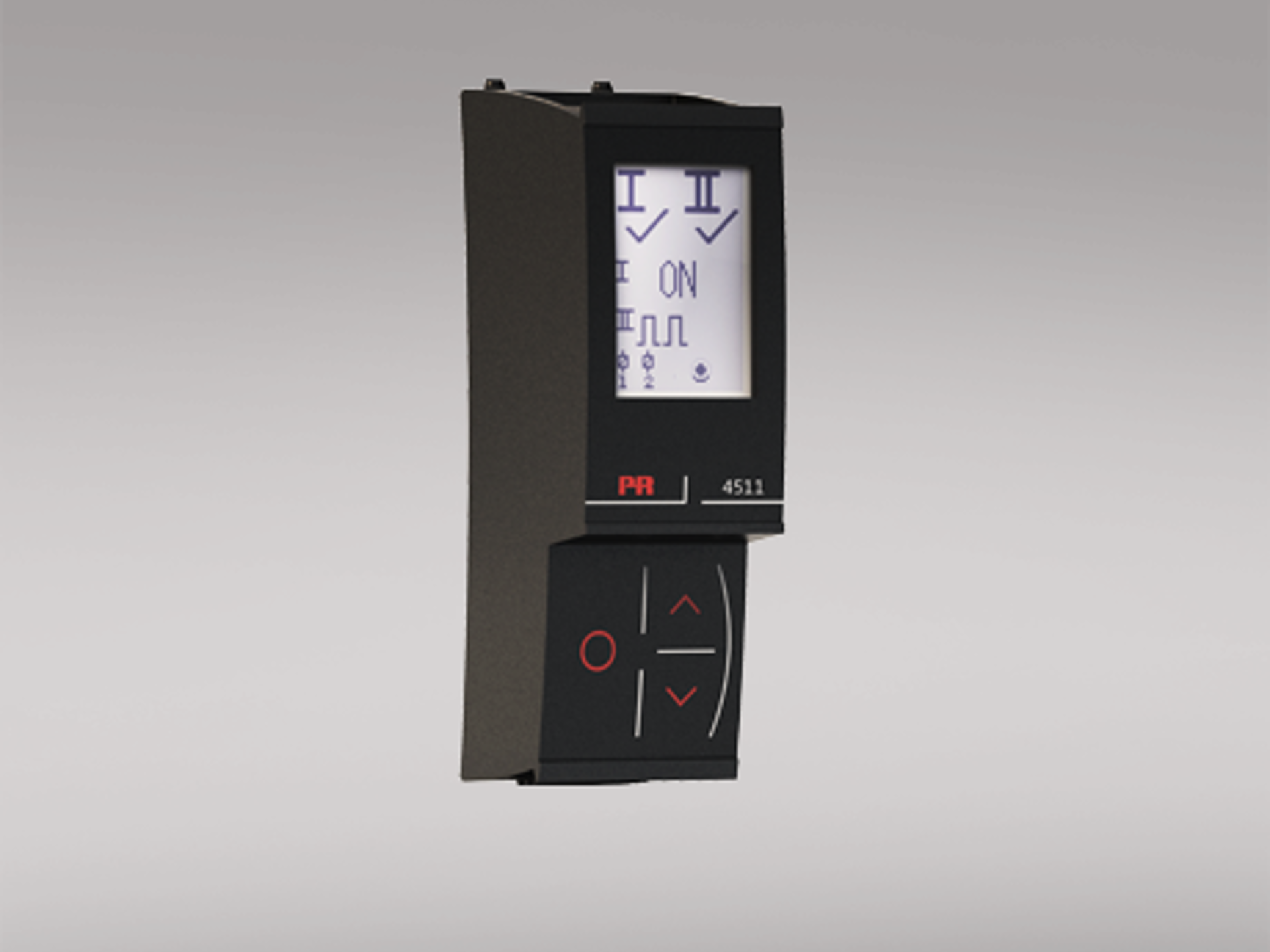

The PR 4511 communication enabler is designed for seamless integration into industrial networks using the robust Modbus RTU protocol. Its RS-485 interface allows for reliable, long-distance communication, making it an ideal choice for remote monitoring, data logging, and integration with existing control systems. The 4511 supports multi-drop network configurations, enabling real-time process data transmission from multiple devices. This digital connectivity enhances asset management by providing a clear, comprehensive overview of your process, allowing for more informed, data-driven decisions.
Wireless freedom: Bluetooth communication for modern operations

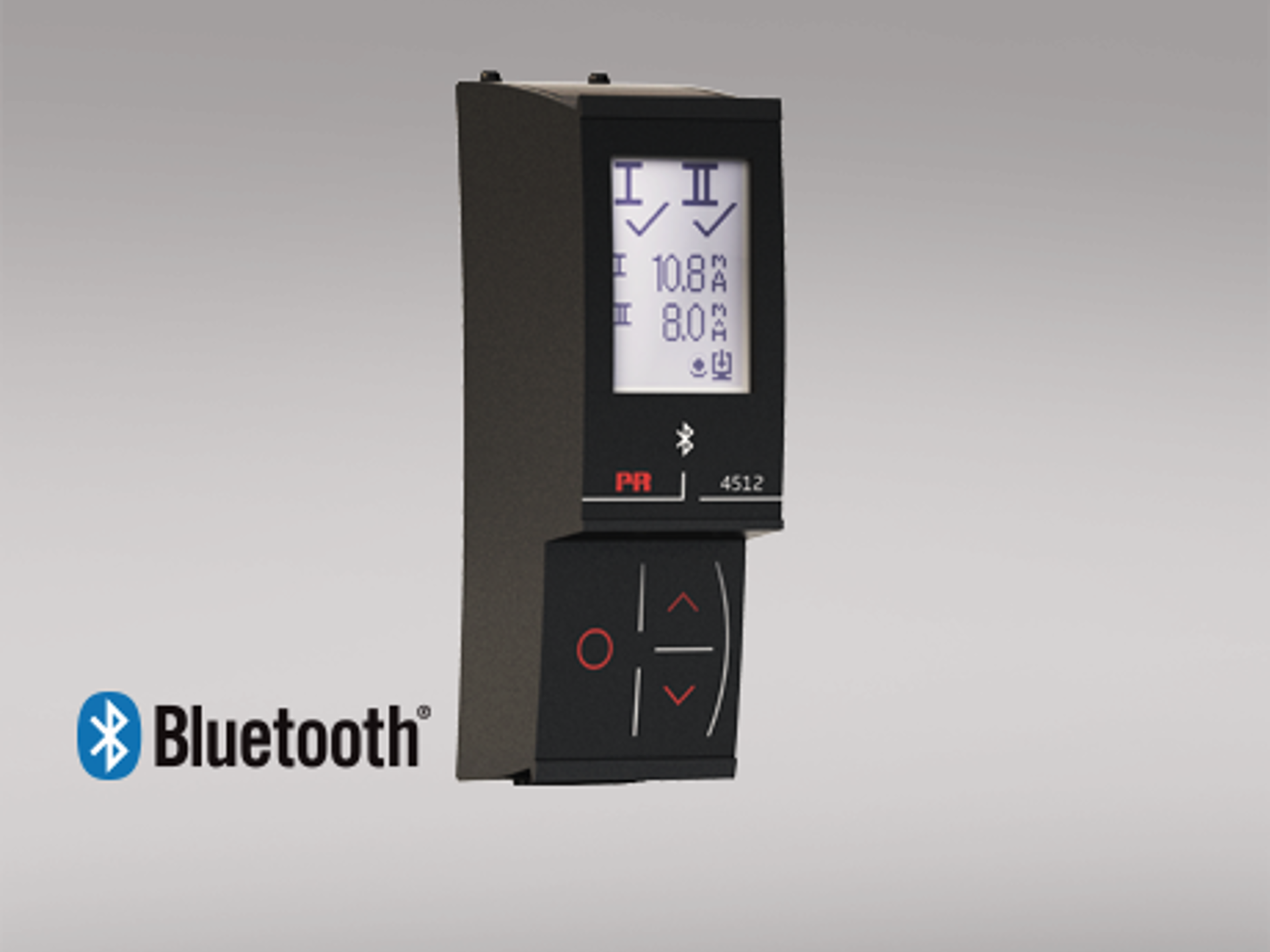

Embrace the flexibility of wireless technology with the PR 4512 Bluetooth communication enabler. This interface allows for cable-free configuration and monitoring from any iOS or Android device, providing unparalleled convenience for maintenance personnel. With Bluetooth 4.2/4.1/4.0 compatibility and approvals for use in Zone 2 / Div. 2 hazardous locations, the 4512 reduces installation complexity and allows for safe, on-the-go access to your process data. This wireless freedom simplifies routine tasks and enhances safety by allowing operators to interact with devices from a safe distance.
Configuration tools: Simplifying device management

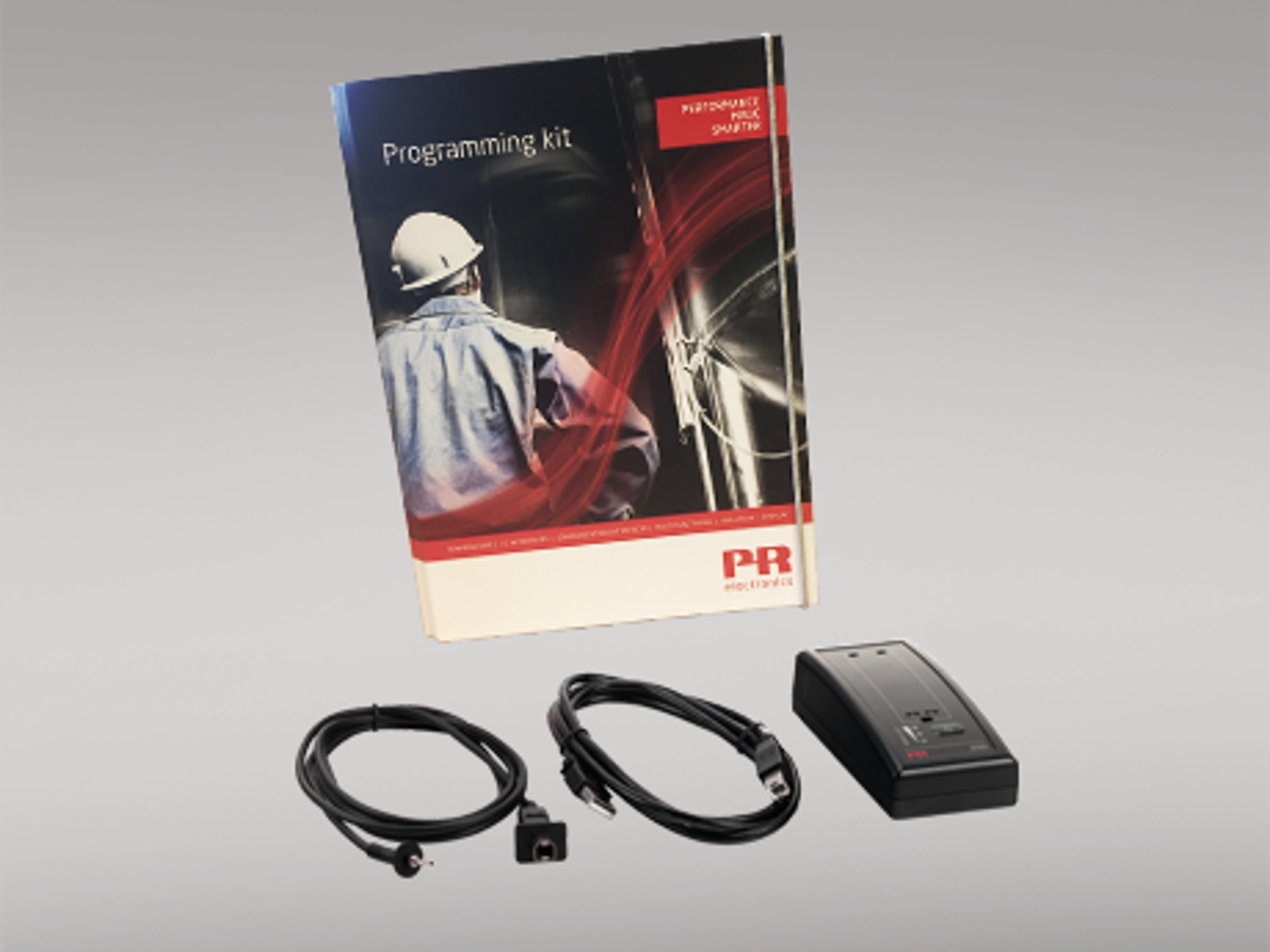

Streamline your commissioning and maintenance workflows with the PR 4590 ConfigMate docking station. This versatile tool offers handheld programming for our 3114 and 3225 devices and provides upload/download functionality for device configurations across our 4000 and 9000 series. The ConfigMate enables you to perform batch configurations for multiple devices, create configuration backups, and replicate settings with ease. This not only saves valuable time but also ensures standardization and consistency across all your installations.
Enhanced diagnostics: Proactive maintenance and troubleshooting
Our communication interfaces unlock powerful diagnostic capabilities, enabling real-time device health monitoring and early fault detection. By providing a continuous stream of data, these interfaces support proactive and predictive maintenance strategies that help to reduce unplanned downtime and lower maintenance costs. The diagnostic data provided by interfaces like the PR 4511 has been used in real-world applications, such as the wastewater lift station surveillance at Lyonnaise des Eaux and the development of advanced diagnostic software modules by SHP Automation. This level of insight allows for data-driven decision-making and proactive interventions, ultimately leading to significant cost savings.
Optimizing process control with smart communication solutions
PR electronics offers a comprehensive range of communication solutions designed to optimize your process control. With flexible options for local, wired, and wireless access, our interfaces provide seamless integration with modern control systems, enhancing both operational efficiency and safety. Our commitment to innovation is reflected in our unique detachable interface concept and our focus on future-ready connectivity. Explore our range of communication interfaces and contact us for expert guidance on finding the perfect solution for your application.
 |
> Case story - how Lyonnaise des Eaux got wastewater lift station surveillance and management – the easier, more cost-efficient and more flexible way with the PR 4511… |
 |
> Case story - how SHP Automation used data provided by the PR 4511 communication enabler to develop software modules in the DCS that provide full diagnostics. SHP's client company has been able to use the data for preventive maintenance... |
How does the Bluetooth Communication Enabler (PR 4512) work, and what is its wireless range?
The PR 4512 uses Bluetooth Low Energy (BLE) 4.2/4.1/4.0 to provide wireless communication with iOS and Android devices running the PR electronics PPS app. It has a wireless range of up to 100 meters (328 ft) in open space. The 4512 allows technicians to monitor process values, configure device parameters, and perform diagnostics from a safe distance — particularly useful in hazardous areas where it is approved for Zone 2/Division 2 mounting. It draws its power from the host device, requiring no external battery or supply.
Can the PR 4500 displays be used in hazardous areas?
Yes. The PR 4510, 4511, and 4512 are approved for Zone 2/Division 2 installation per ATEX (II 3 G Ex ec IIC T5), IECEx, FM/UL (Class I, Div 2, Groups A-D), and UKEX standards. This means they can be mounted on signal conditioning devices located in areas with an infrequent or short-duration presence of explosive gas atmospheres. When paired with 9000-series I.S. barriers in the safe area, they enable local monitoring without additional explosion protection measures on the display itself.
How does the PR 4511 Modbus interface enable integration with DCS and SCADA systems?
The PR 4511 converts the internal device data (process value, configuration parameters, diagnostic status) of any compatible PR 4000 or 9000 series device into Modbus RTU registers accessible over RS-485. A DCS or SCADA system can poll these registers to read live process values, alarm states, and device health — in addition to the standard 4-20 mA analog output. This provides a secondary digital data path for enhanced diagnostics and predictive maintenance without replacing the existing analog infrastructure.
What is the display rotation feature on PR 4500 communication interfaces?
All PR 4500 series displays support 180-degree display rotation. This allows the display to be mounted upside-down relative to the host device and still be read correctly. This is particularly useful in installations where signal conditioning devices are mounted with their terminal blocks facing upward (inverted orientation), which is common when cable routing requires top entry. The rotation is configured through the display's on-screen menu.
How many PR 4511 Modbus devices can be connected on a single RS-485 network?
Up to 32 PR 4511 units can be connected on a single RS-485 multidrop line without requiring a repeater, per the RS-485 standard. Each device is assigned a unique Modbus address (1-247). For larger installations exceeding 32 devices, RS-485 repeaters can be used to extend the network. PR electronics offers dedicated Modbus cables (PR 8510 for 8-unit connection, PR 8511 Y-splitter) and RJ45 accessories (PR 8513-8517) to simplify wiring.
What isolation protection does the PR 4511 provide between the fieldbus and the host device?
The PR 4511 provides 2.5 kVAC test isolation (250 VAC reinforced working voltage) between the RS-485 communication bus and the host signal conditioning device. This ensures that faults, surges, or ground potential differences on the Modbus network cannot affect the host device's measurement integrity or damage its electronics. The isolation also prevents ground loops when multiple devices on the RS-485 bus are connected to different power references.
What response time and update rate does the PR 4511 achieve for Modbus communication?
The PR 4511 has an internal response time of less than 20 ms and an update rate exceeding 50 Hz. This means that process value changes are reflected in the Modbus registers within 20 ms of the host device updating its output. The actual polling rate achieved depends on the baud rate setting, the number of devices on the bus, and the Modbus master's polling cycle. At 115,200 bps with a single device, very high throughput can be achieved for applications requiring near-real-time digital data.
