Power control unit



9410



  • Distributes supply voltage to the power rail
  • Optional connection of backup supply
  • Approved for installation in I.S. / Ex zone 2 / Div. 2
  • Optional redundant supply for the power rail
  • Must be installed on power rail, PR type 9400
Ex Iec Iecex Fmapprovedcus UL List Inmetro Dekra Kcs Mark CCC DNV Eac Ex Mpa EAC UKCA CE Pr Rohs3 Guarantee

  1. Overview + -

  2. Technical details + -

  3. Accessories + -

  4. Order and delivery + -

  5. Why choose PR + -

Application and advanced features

  • The power control unit detects errors from any of the devices mounted on the power rail and transmits a collective alarm to the control system via the internal status relay.
  • Optional connection of two power supplies - a primary supply and a backup supply.
  • Redundant supply for the power rail can be obtained by mounting two 9410 devices connected to 2 separate power supplies (e.g. PR no. 9421).

Technical characteristics

  • The status relay will be energised when the following three conditions are met:
    1. Supply voltage is present on pins 31 and 32.

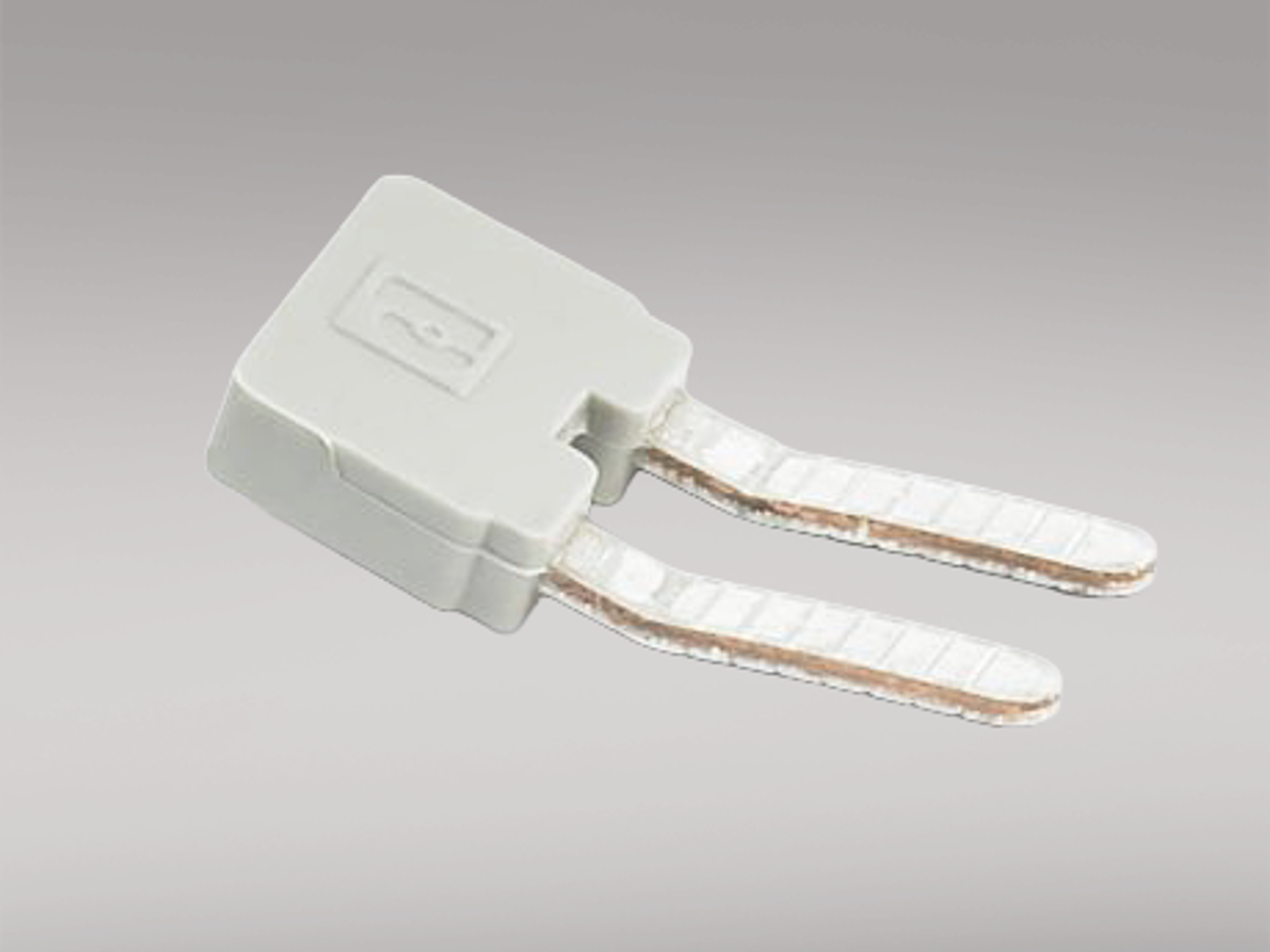

    2. Backup supply voltage is present on pins 34 and 33. (If the backup supply is not in use, a jumper must be placed between pins 32 and 33 - the jumper is delivered with the device).
    3. There are no error messages from the devices connected to the power rail.
  • When a collective alarm is activated via the power rail, the status relay in the 9410 will be de-energized (pins 11, 12 and 13).
  • Two green front LEDs indicate connection of supply and backup.
  • A red LED indicates error status.

Data sheet & Manuals

Data sheet
Manuals
Manuals in Russian
Manuals in Portuguese (Brazil)
Manuals in Korean

Approvals & Certificates

ATEX certificate
IECEx certificate
UKEX certificate
CCC certificate
FM certificate
INMETRO certificate
KCs certificate
UL certificate
DNV marine certificate
EAC declaration
EAC LVD declaration
EAC Ex certificate
Metrology Pattern Approval (MPA), Russia

Supplementary documentation

EU Declaration of Conformity
UKCA Declaration of Conformity
EMC data

Order form

Environmental Conditions

Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 104 mm
Weight approx. 140 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm2 AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g

Common specifications

Supply
Max. required power 96 W
Internal power dissipation 2 W (max.)
Efficiency > 97.9%

Input specifications

Supply voltage 21.6...26.4 VDC (double / reinforced isolation)
Backup supply 21.6...26.4 VDC

Output specifications

Status relay
Max. voltage 250 / 30 VDC
Max. current 2 AAC / 2 ADC
Max. AC power 500 VA / 60 W
Output voltage Input voltage-0.5 VDC (@ 4 A)
Output power 96 W (max.)
Output current 4 A (max.)
Output ripple Same as input ripple

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
EAC LVD TR-CU 004/2011

Approvals

ATEX KEMA 07ATEX0152 X
IECEx KEM 08.0025X
UKEX DEKRA 21UKEX0169X
c FM us FM19US0056X /FM19CA0029X
INMETRO DEKRA 23.0013X
c UL us, UL 61010-1 E314307
c UL us, UL 913 E233311 (only 9410-U9)
KCs 21_AV4BO_0185X (only 9410-KCs)
CCC 2020322303003230
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA00000JD
