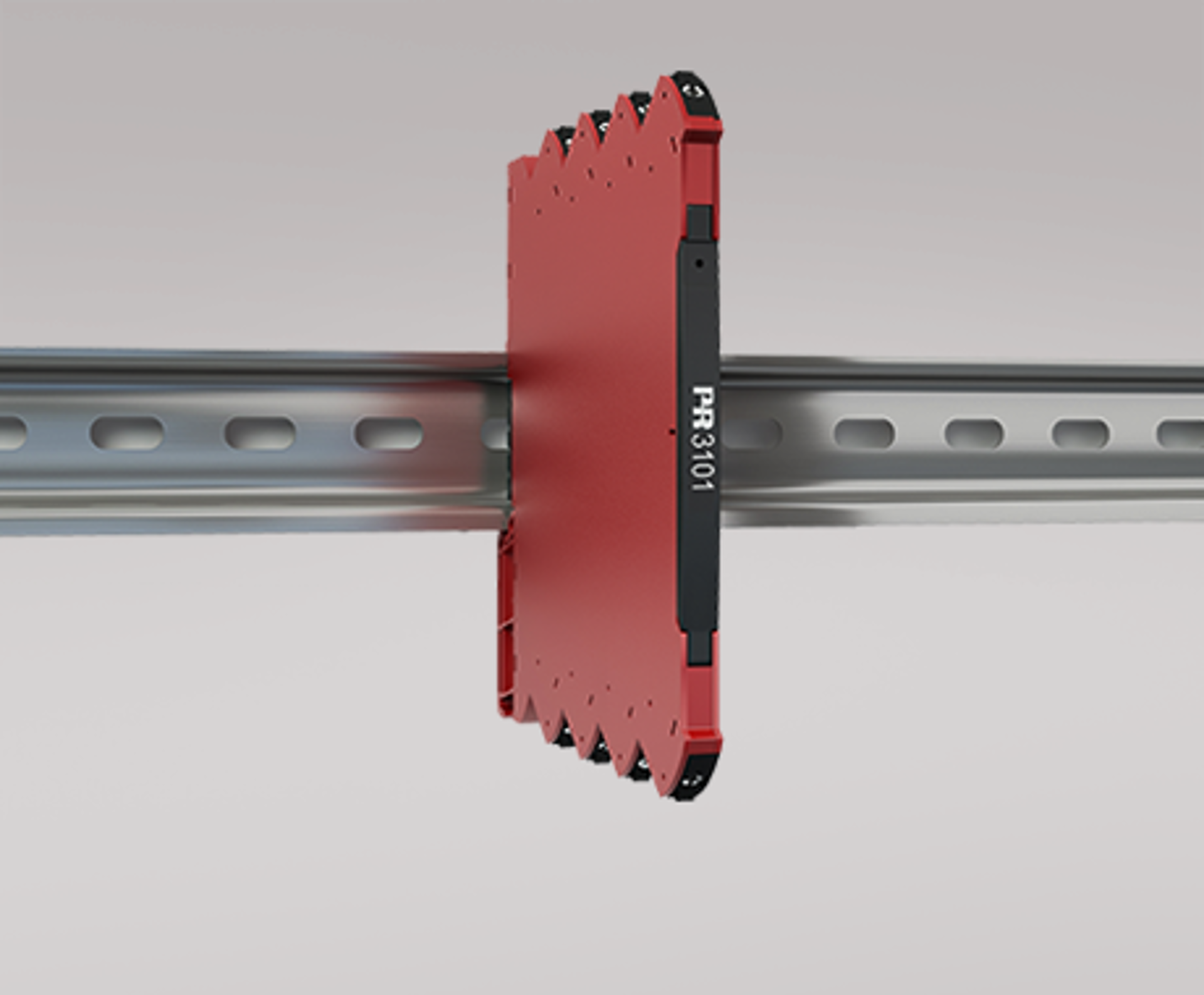

TC converter



3101



  • High accuracy, better than 0.1% of span
  • Slimline housing of 6.1 mm
  • Excellent EMC performance and 50/60 Hz noise suppression
  • Selectable < 30 ms / 300 ms response time
  • Pre-calibrated temperature ranges selectable via DIP-switches
Zone2 Ex Iec Iecex Zone2 Fmapprovedcus Zone2 UL List DNV Eac Ex Mpa UKCA EAC CE Pr Rohs Guarantee

  1. Overview + -

  2. Technical details + -

  3. Accessories + -

  4. Order and delivery + -

  5. Why choose PR + -

Application

  • The 3101 temperature converter measures standard TC J and K temperature sensors, and provides an analog voltage or current output.
  • The 3101 can be mounted in the safe area or in Zone 2 / Division 2 areas.
  • Approved for marine applications.

Technical characteristics

  • Flexibly powered by 24 VDC (±30%) via connectors.
  • < 30 ms fast response time with simultaneous sensor error detection when selected.
  • Selectable 300 ms response time when signal dampening is needed.
  • High conversion accuracy in all available ranges, better than 0.1% of span.
  • Meeting the NAMUR NE21 recommendations, the 3101 provides top measurement performance in harsh EMC environments.
  • The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
  • A visible green LED indicates operational status of the unit and the input sensor.
  • All terminals are protected against overvoltage and polarity error.
  • Excellent signal/noise ratio of > 60 dB.

Mounting / installation / programming

  • Selectable DIP-settings for easy configuration of more than 1000 factory calibrated measurement ranges.
  • The narrow 6.1 mm housing allows up to 163 units to be mounted per meter of DIN rail, without any air gap between units.
  • Wide ambient temperature range of -25...+70°C.

Data sheet & Manuals

Data sheet
Manuals
Manuals in Russian

Approvals & Certificates

ATEX certificate
IECEx certificate
UKEX certificate
FM certificate
UL certificate
DNV marine certificate
EAC declaration
EAC Ex certificate
Metrology Pattern Approval (MPA), Russia

Supplementary documentation

EU Declaration of Conformity
UKCA Declaration of Conformity
CCC statement
EMC data
PR default configurations

Order form

Environmental Conditions

Operating temperature -25°C to +70°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 113 x 6.1 x 115 mm
Weight approx. 70 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.5 mm2 / AWG 26...12 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...25 Hz ±1.6 mm
25...100 Hz ±4 g

Common specifications

Supply
Supply voltage 16.8...31.2 VDC
Max. required power 0.52 W
Max. power dissipation 0.52 W

Response time
Response time (0...90%, 100...10%) < 30 ms / 300 ms (selectable)
Signal / noise ratio Min. 60 dB
Programming DIP-switches
Signal dynamics, input 23 bit
Signal dynamics, output 18 bit
Accuracy Better than 0.1% of sel. range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Incorrect DIP-switch setting identification 0 V / 0 mA output; LED 0.5 s / 1 Hz

Input specifications

TC input
Temperature range, TC J -100...+1200°C
Temperature range, TC K -180...+1372°C
Min. measurement range (span) - TC J & K 50°C
Accuracy: the greater of Better than 0.1% of span or 1°C
Temperature coefficient: the greater of 0.1°C/°C or ≤ ±0.01%/°C
Sensor cable resistance < 5 kΩ per wire
Cold junction compensation (CJC): Accuracy @ internal CJC Better than ±2.5°C
Internal CJC error detection Yes
Open Thermocouple detection Yes - selectable via DIP-switch

Output specifications

Common output specifications
Updating time 10 ms

Current output
Signal range 0...23 mA
Programmable signal ranges 0 / 4...20 mA
Sensor error indication (0...20 mA) 0 mA or 23 mA / OFF
Sensor error indication (4...20 mA) 3.5 mA or 23 mA / acc. to NAMUR NE43 or OFF
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limitation @ low output load < 60 mA peak / < 4 mA average

Voltage output
Programmable signal ranges 0/1...5 and 0/2...10 V
Sensor error indication 0 V / 10% above the max. / none
Load (@ voltage output) ≥ 10 kΩ
Open output < 18 V

I.S. / Ex marking

ATEX II 3 G Ex ec IIC T4 Gc
IECEx Ex ec IIC T4 Gc
FM, US Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, AEx nA IIC T4
FM, CA Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, Ex nA IIC T4
EAC Ex 2Ex nA IIC T4 Gc X

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011

Approvals

ATEX KEMA 10ATEX0147 X
IECEx KEM 10.0068X
UKEX DEKRA 21UKEX0055X
c FM us FM17US0004X / FM17CA0003X
c UL us, UL 61010-1 E314307
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA00001RW
