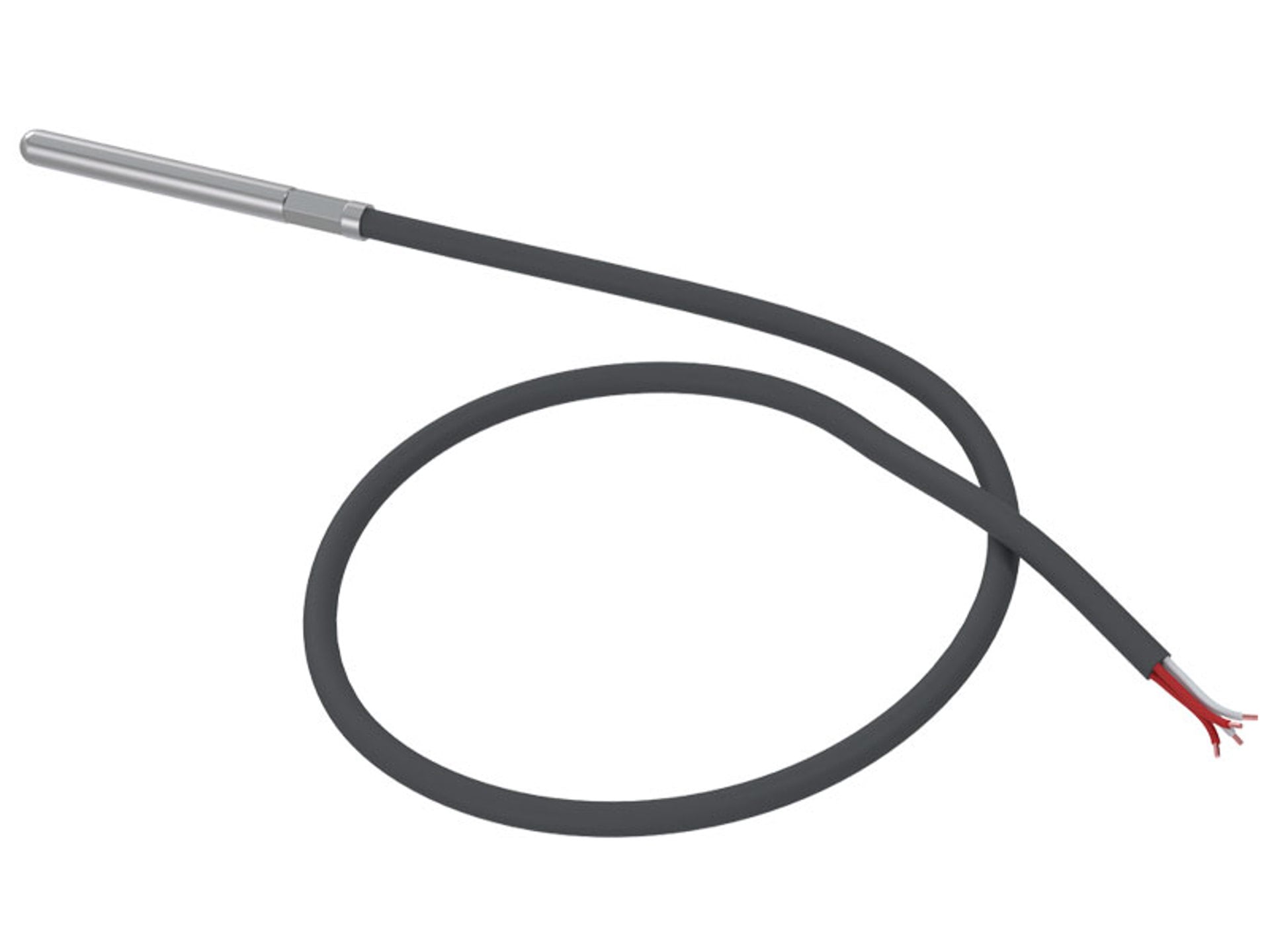

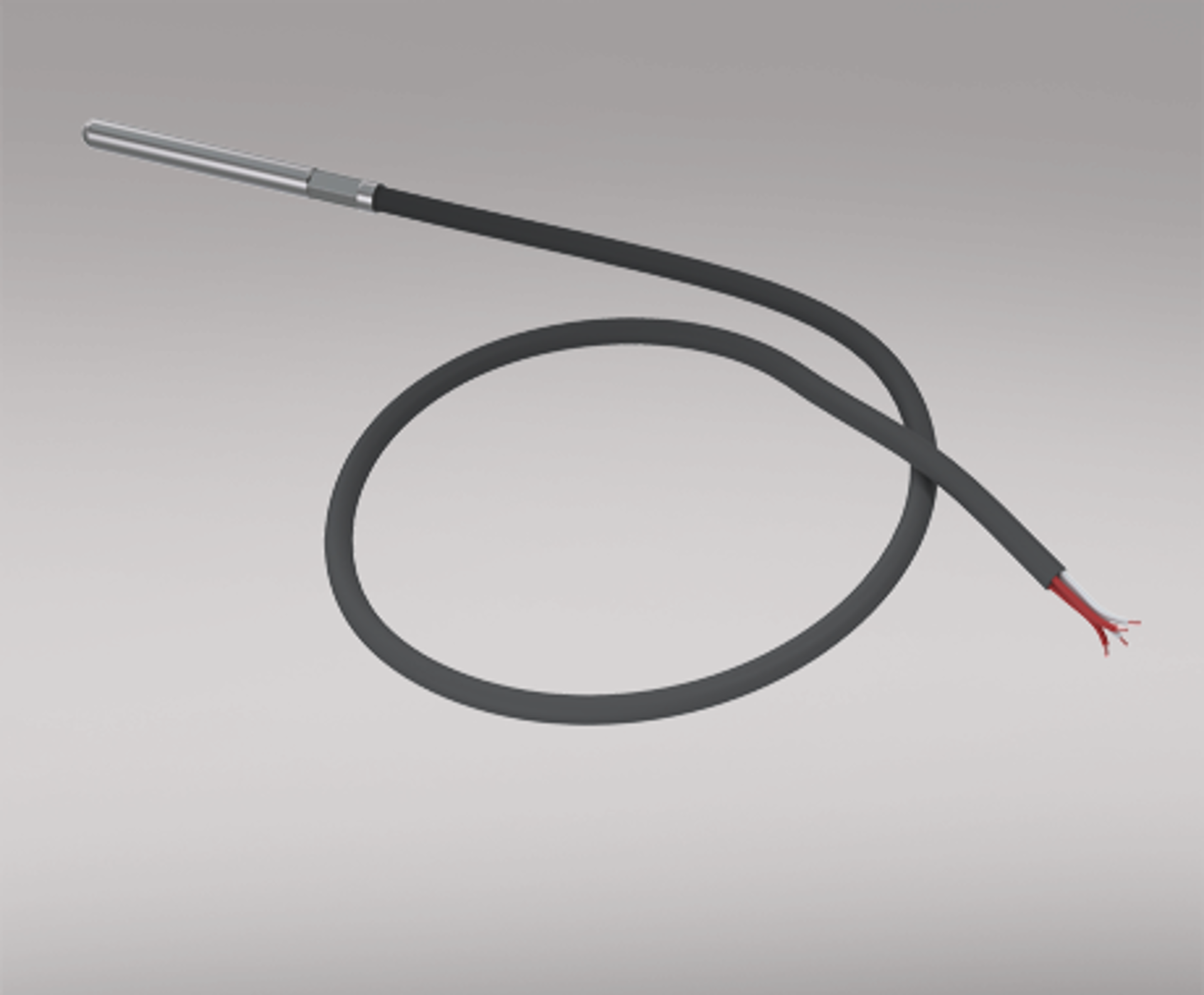

Pt100 cable sensor




  • All-purpose sensor / insert
  • Ø6 x 60 mm
  • For tasks that require interchangeable inserts
  1. Overview + -

Technical characteristics

  • Accuracy: IEC 60751, class A
  • Process attachment: thermowell or adjustable coupling
  • Outer protective sheath: stainless acid-proof steel, Wno. 1.4571 (AISI 316Ti)
  • Withstands vibrations
  • Measuring insert: Fixed
  • Temperature range min/max: -50...+180°C
  • Connection: 5, meters, 4-wire silicone cable 0.25 mm2

Data sheet & Manuals

Data sheet

Supplementary documentation

EU Declaration of Conformity
