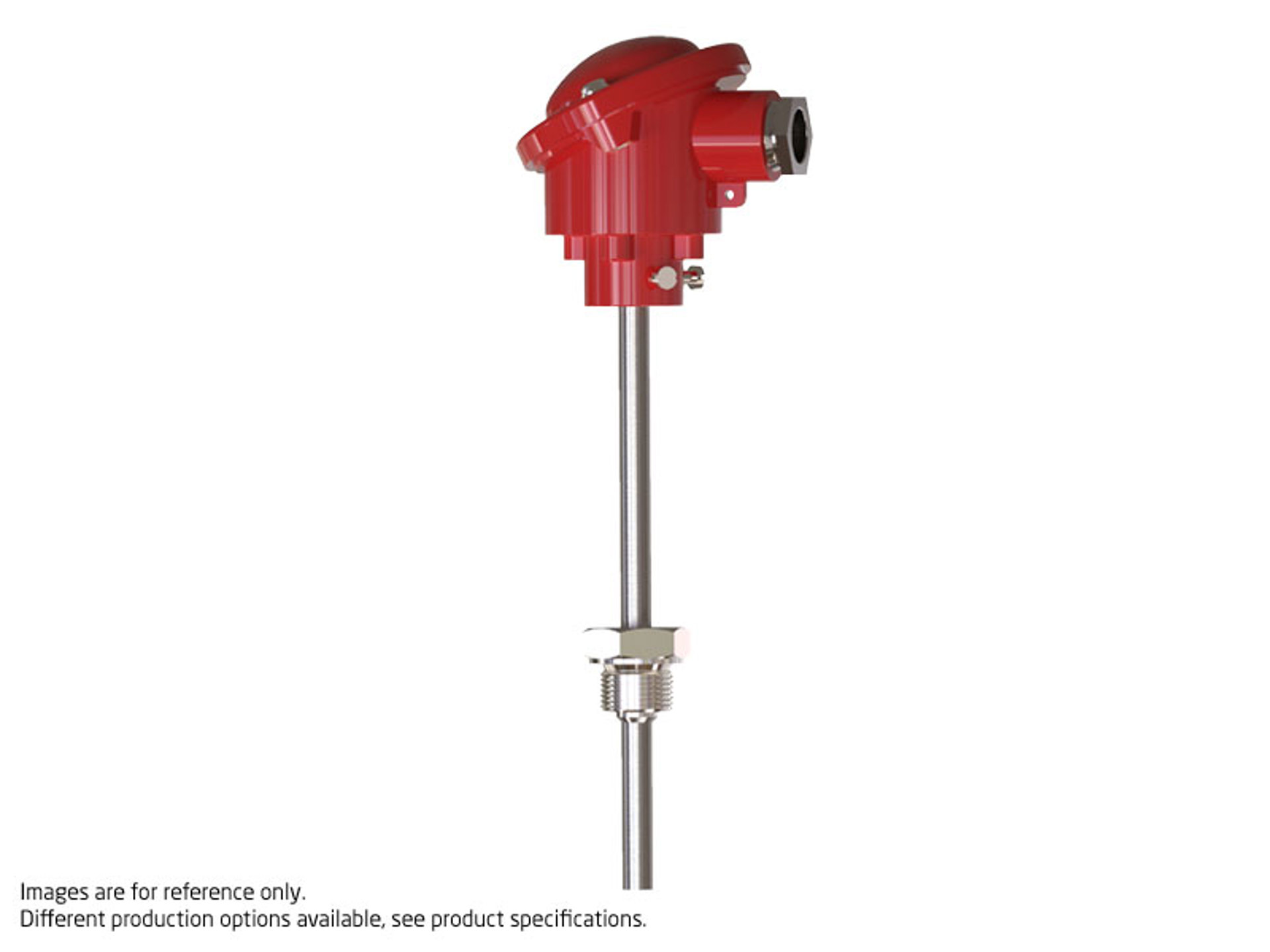

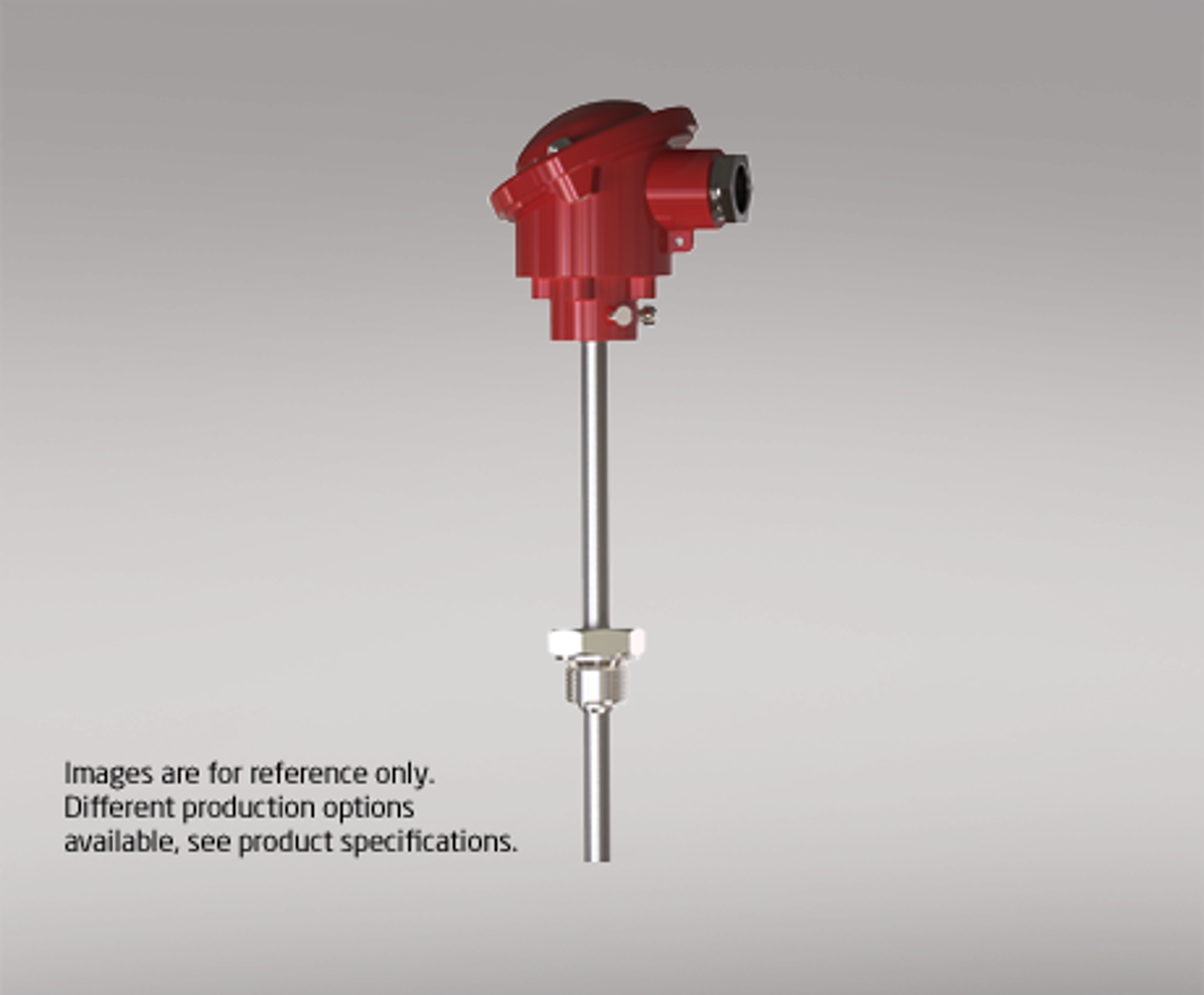

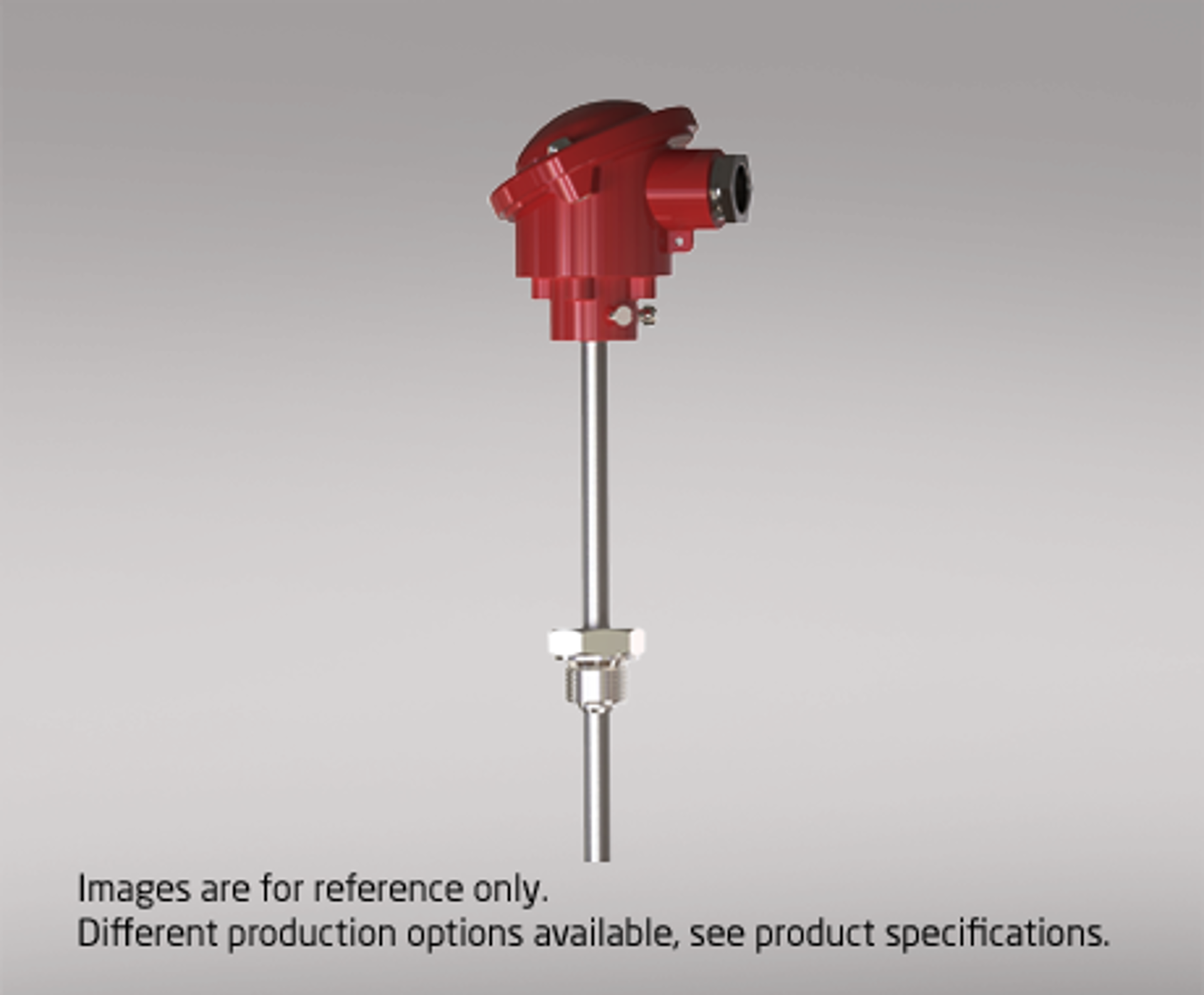

High temperature TC K sensor
PR 7452
- Interchangeable insert
- Protective tube Ø9 mm
- G ½ process connector
- TC type K, class 1
- Measuring range -50...850°C
Application
- The 7452 is a general purpose thermocouple temperature transmitter designed for high-temperature measurement in demanding industrial environments.
- Ideal for use in chemical plants, refineries, power generation, and heat treatment processes requiring accurate and stable temperature monitoring up to 850°C.
- Suitable for temperature measurement in both gaseous and liquid media.
Technical characteristics
- The 7452 model is equipped with an interchangeable Type K, class 1 thermocouple insert, allowing for easy replacement or calibration without removing the entire sensor assembly from the process.
- The design ensures minimal downtime and consistent measurement accuracy in high-temperature applications.
- The protective tube is manufactured from acid-proof stainless steel EN 1.4571/1.4404 / AISI 316L/TI, providing excellent resistance to heat, oxidation, and corrosion.
- An optional cooling extension is available, allowing safe operation and long service life in high-temperature applications up to 850°C.
- A ½" G welded thread nipple offers flexible and reliable process connection options.
- The protective tube has an outer diameter of 9 mm, combining durability with a fast thermal response.
- The terminal head is a DIN 43729 form B aluminum housing, finished with a robust industrial-grade lacquer to ensure long-term corrosion protection in harsh operating environments.
Electrical connection
- Delivered with a 2-wire thermocouple connection, ensuring dependable signal transmission and stable performance across the full temperature range up to 850°C.
Options
- Combine with the PR 5300 / PR 5400 series transmitter - we can deliver the transmitter pre-mounted to the sensor.
- Optional ceramic socket available for connection to externally installed transmitters.
- Material certificate, certificate of origin, certificate of conformity and calibration reports can be supplied when ordered together with the sensor.
Data sheet & Manuals
Supplementary documentation
Order form
Environmental Conditions
| Enclosure rating | IP54 |
| Measuring range | -50...850°C |
Mechanical specifications
| Protective tube size Ø | Ø9 mm |
| Cable connection | M20 x 1.5 Nickel-plated brass cable gland |
| Protective tube material (wetted parts) | EN 1.4571 / AISI 316Ti |
| Sensor head material | Aluminum - red enamel |
| Sensor head type | DIN 43729 form B |
Electrical specifications
| Sensor element | TC K |
| Sensor element type / insulation | Fixed insert |
| Accuracy class acc. to IEC 60751 | Class 1 |
| Optional head transmitter | PR5300 / PR 5400 |
Observed authority requirements
| RoHS | 2011/65/EU |
