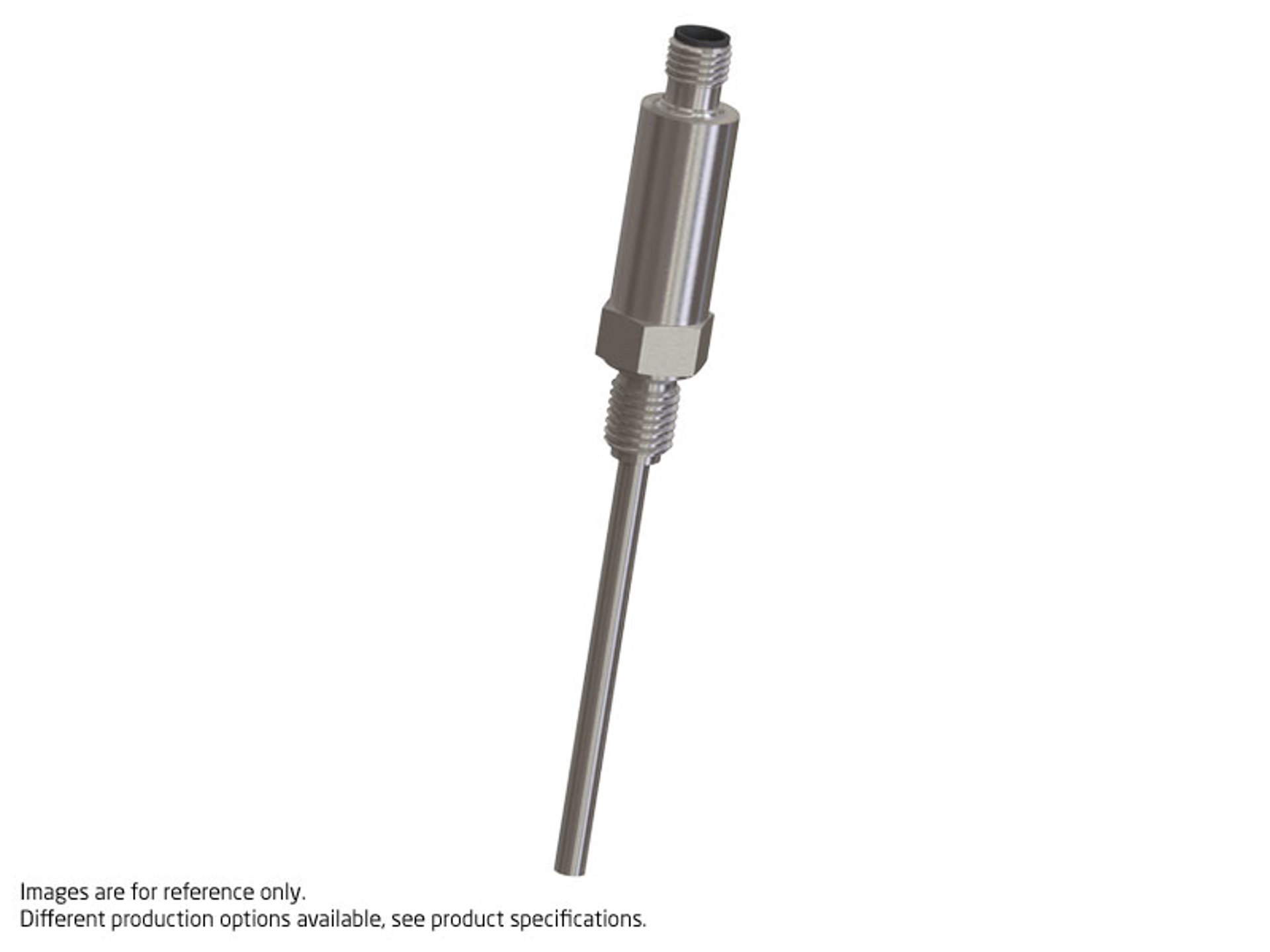

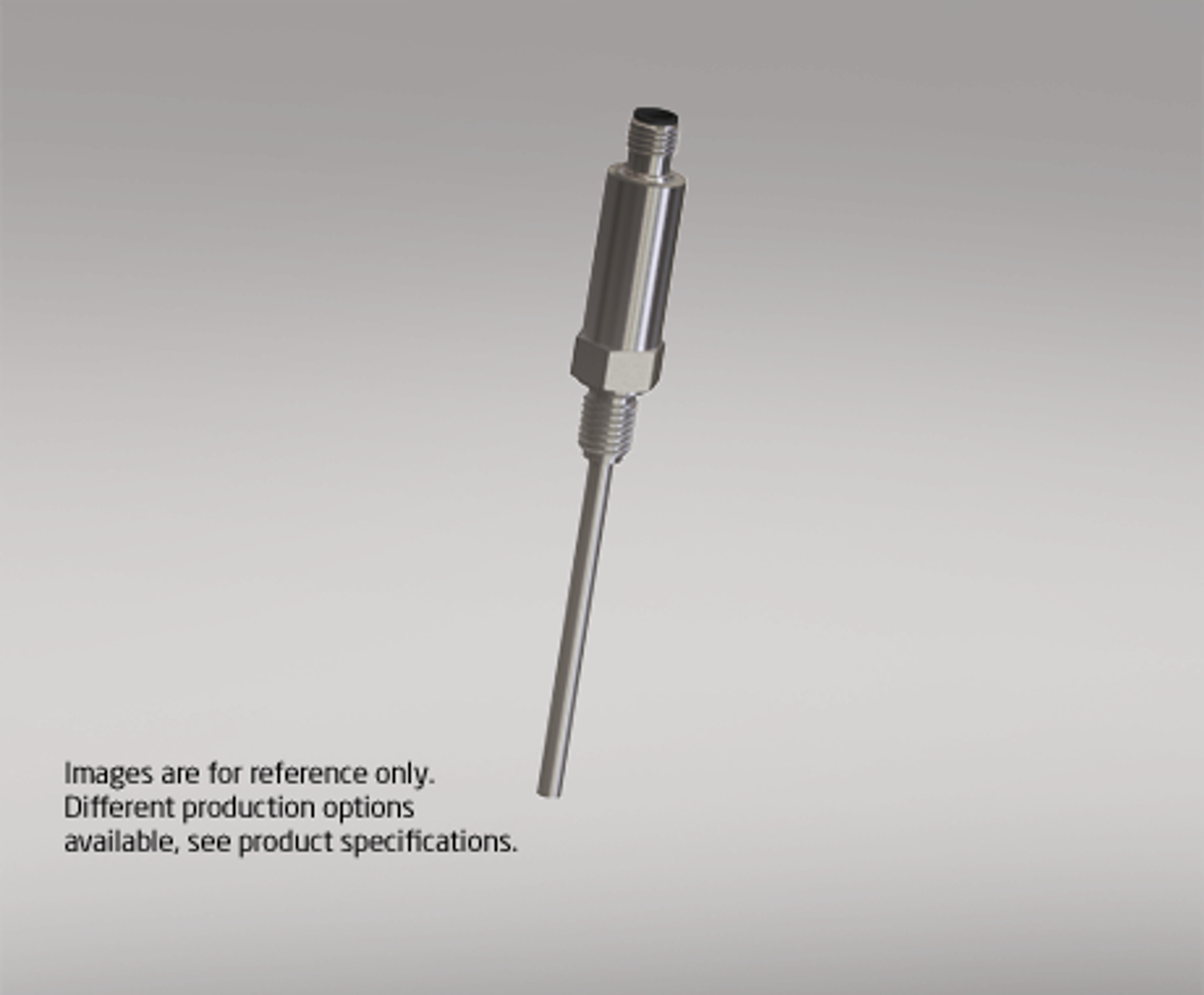

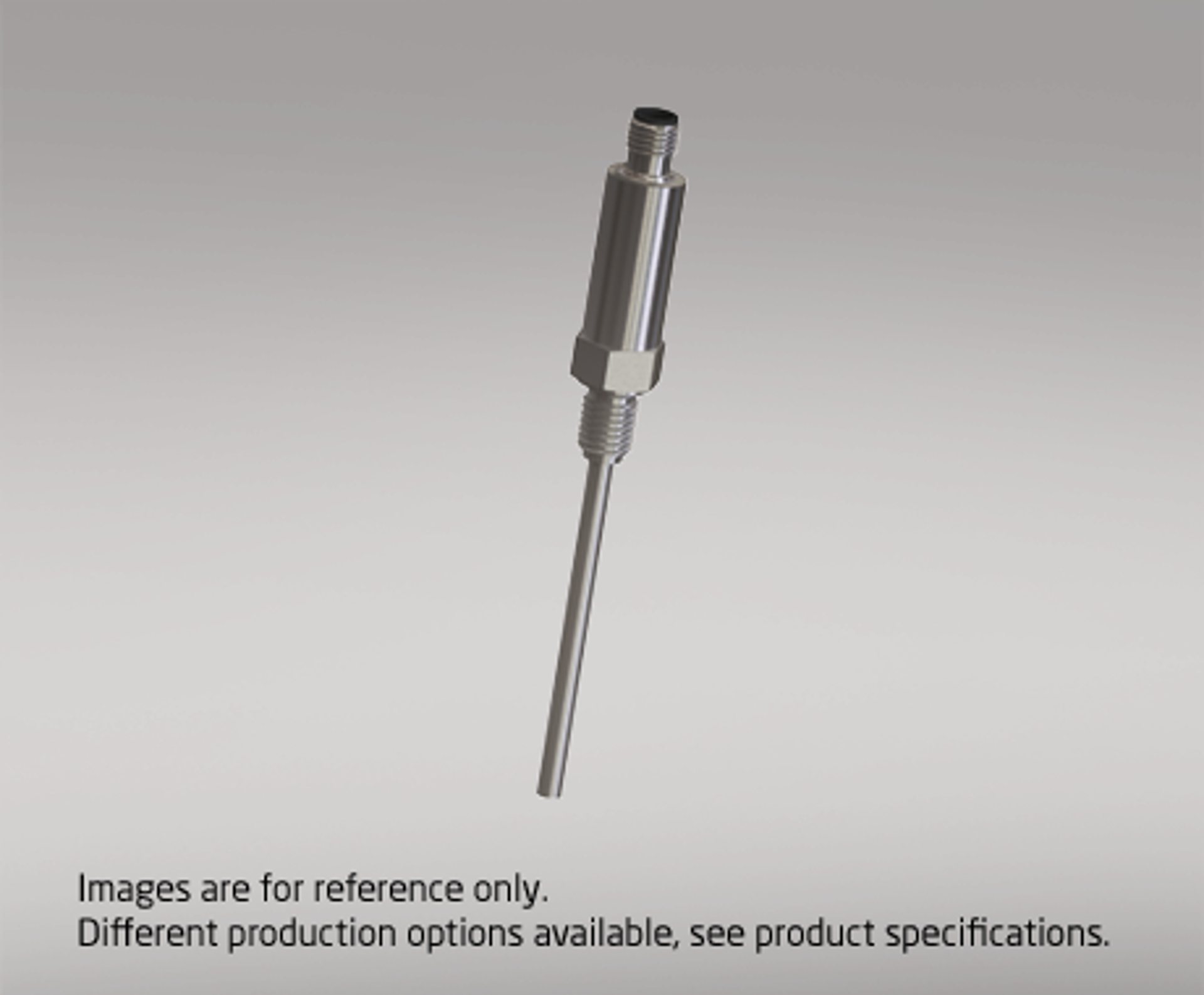

Compact RTD sensor
PR 7802
- Protective tube Ø6 or Ø8 mm
- G ¼ process connector
- M12 electrical connector
- Accuracy, IEC 60751 class A
- Measuring range -50...180°C
Application
- A compact RTD temperature sensor designed for accurate and reliable temperature measurement of liquid and gaseous media across a wide range of industrial applications.
- It is ideal for installations where fast electrical connection and disconnection are required. Commonly used in processing plants, the shipping industry, refrigeration systems, mechanical engineering, and the energy sector.
- The integrated 2-wire PR 5802 transmitter allows easy parameterization and adaptation of process and sensor characteristics when used with the optional PR Loop Link programmer.
Technical characteristics
- This sensor is equipped with an integrated programmable transmitter (PR 5802) that delivers a standard 4...20 mA output signal, ensuring compatibility with most industrial control and monitoring systems.
- Built to handle mechanical and thermal stress in accordance with DIN 43772, the sensor provides long-lasting performance even in demanding environments.
- The outer protective sheath and process nipple are made from acid-proof stainless steel EN 1.4571 / AISI 316Ti, ensuring corrosion resistance and durability in aggressive media.
- The process connection is ¼" G for easy installation.
- Designed to withstand media temperatures up to 250°C, with an ambient temperature range of -40…85°C, this sensor maintains precise performance under harsh environmental conditions.
- 7802 withstands vibration and offers a quick reaction time, making it suitable for dynamic process conditions.
Electrical connection
- The sensor uses an M12 connector, code A, for fast coupling and uncoupling and secure electrical contact.
Connection and installation
- Refer to the PR 5802 Transmitter manual for detailed programming instructions.
- M12 connector layout:
Pin 1: + terminal in passive current loop (red for Loop Link programmer)
Pin 2: – terminal in passive current loop (black for Loop Link programmer)
Data sheet & Manuals
Supplementary documentation
Order form
Environmental Conditions
| Enclosure rating | IP67 |
| Measuring range | -50...180°C |
| Operating temperature | -40°C to +85°C |
Mechanical specifications
| Insertion length L1 | 100 mm |
| Protective tube size Ø | Ø6 or Ø8 mm |
| Cable connection | M12 male Code A |
| Protective tube material (wetted parts) | EN 1.4571 / AISI 316Ti |
| Sensor head material | EN 1.4571 / AISI 316Ti |
Electrical specifications
| Sensor element | Pt100 |
| Sensor element type / insulation | Fixed insert / thin film, mineral insulated |
| Sensor element wires | 3-wire |
| Accuracy class acc. to IEC 60751 | Class A |
| Integrated transmitter | PR 5802A2A2 |
Observed authority requirements
| RoHS | 2011/65/EU |
