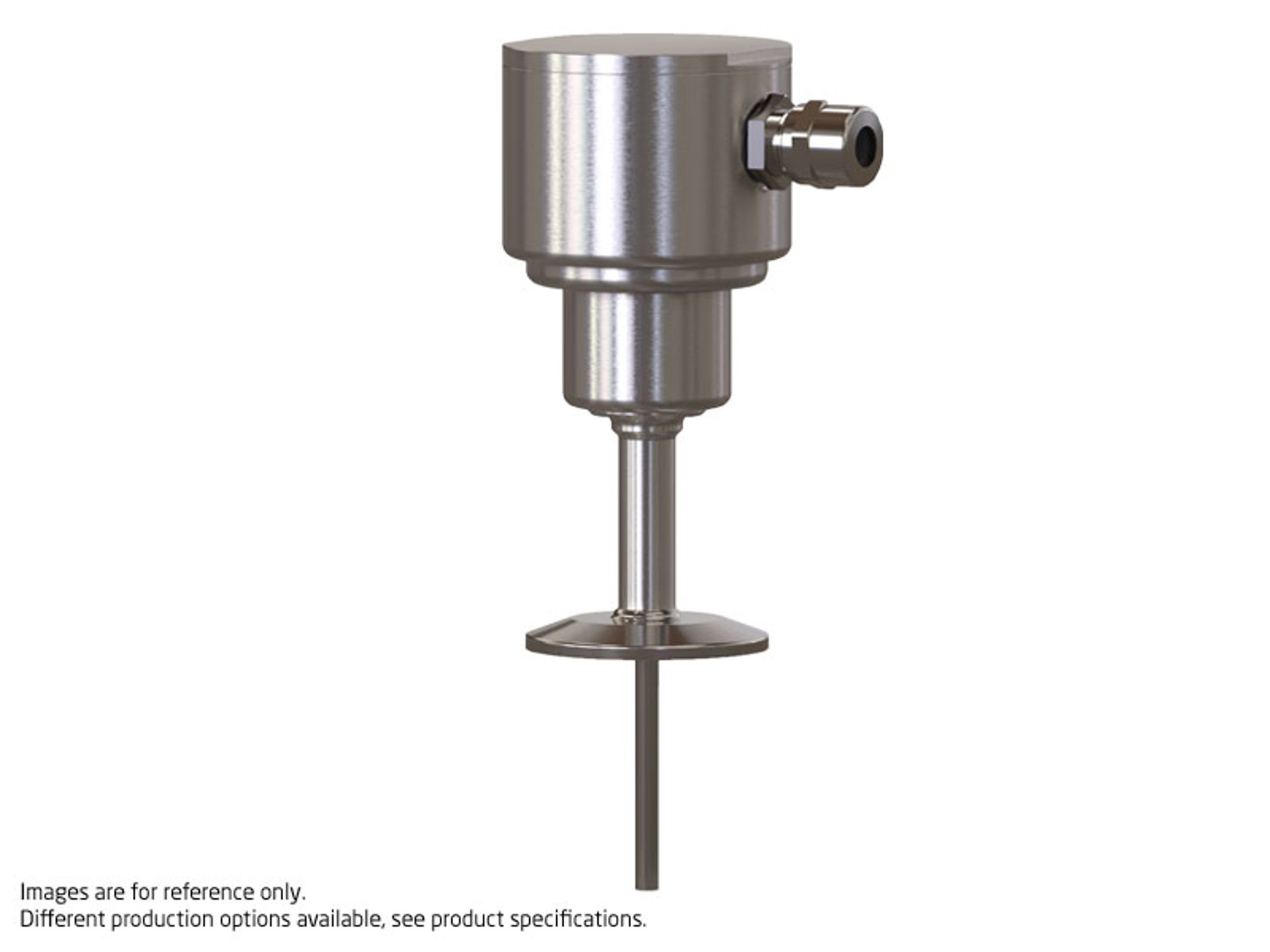

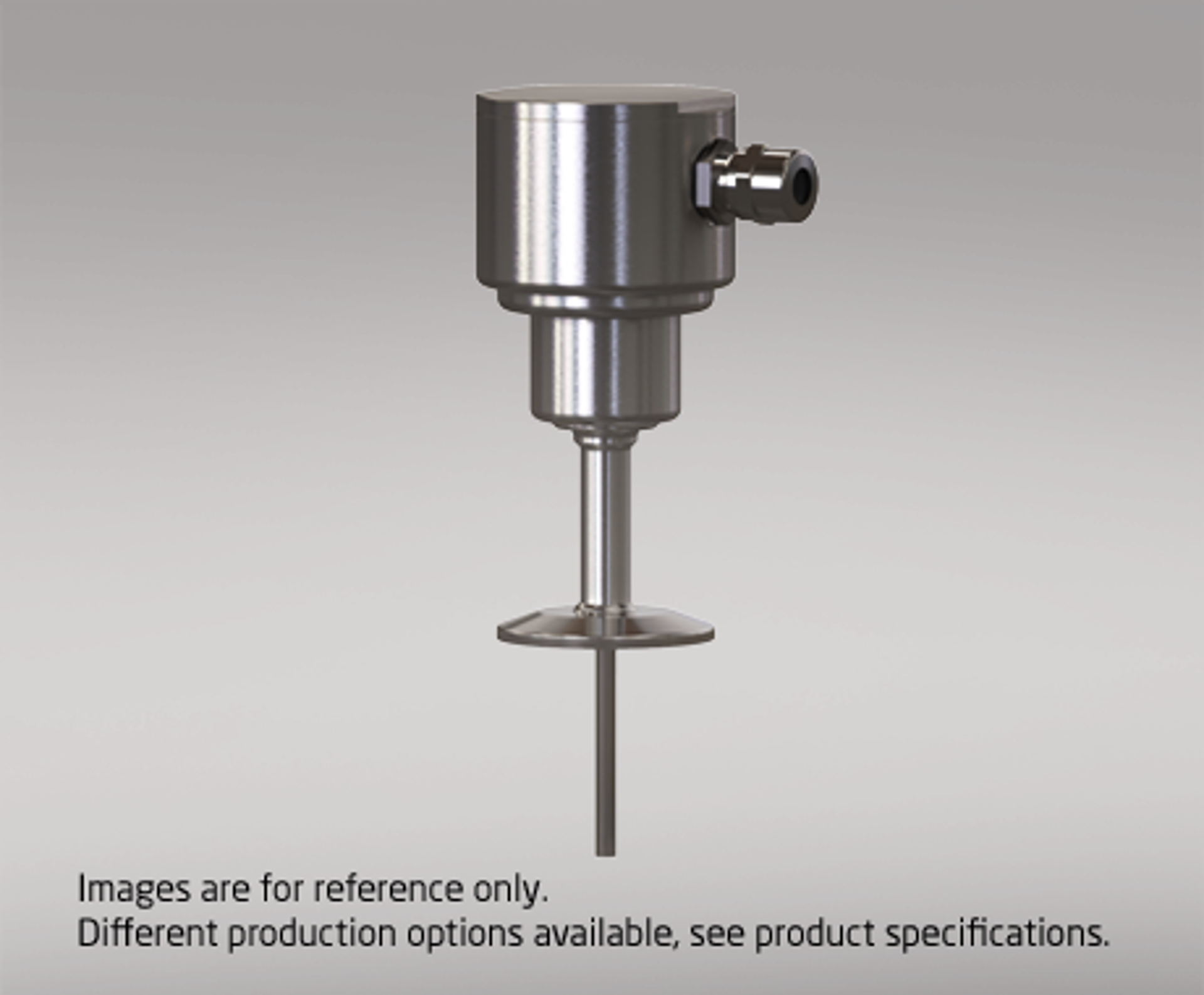

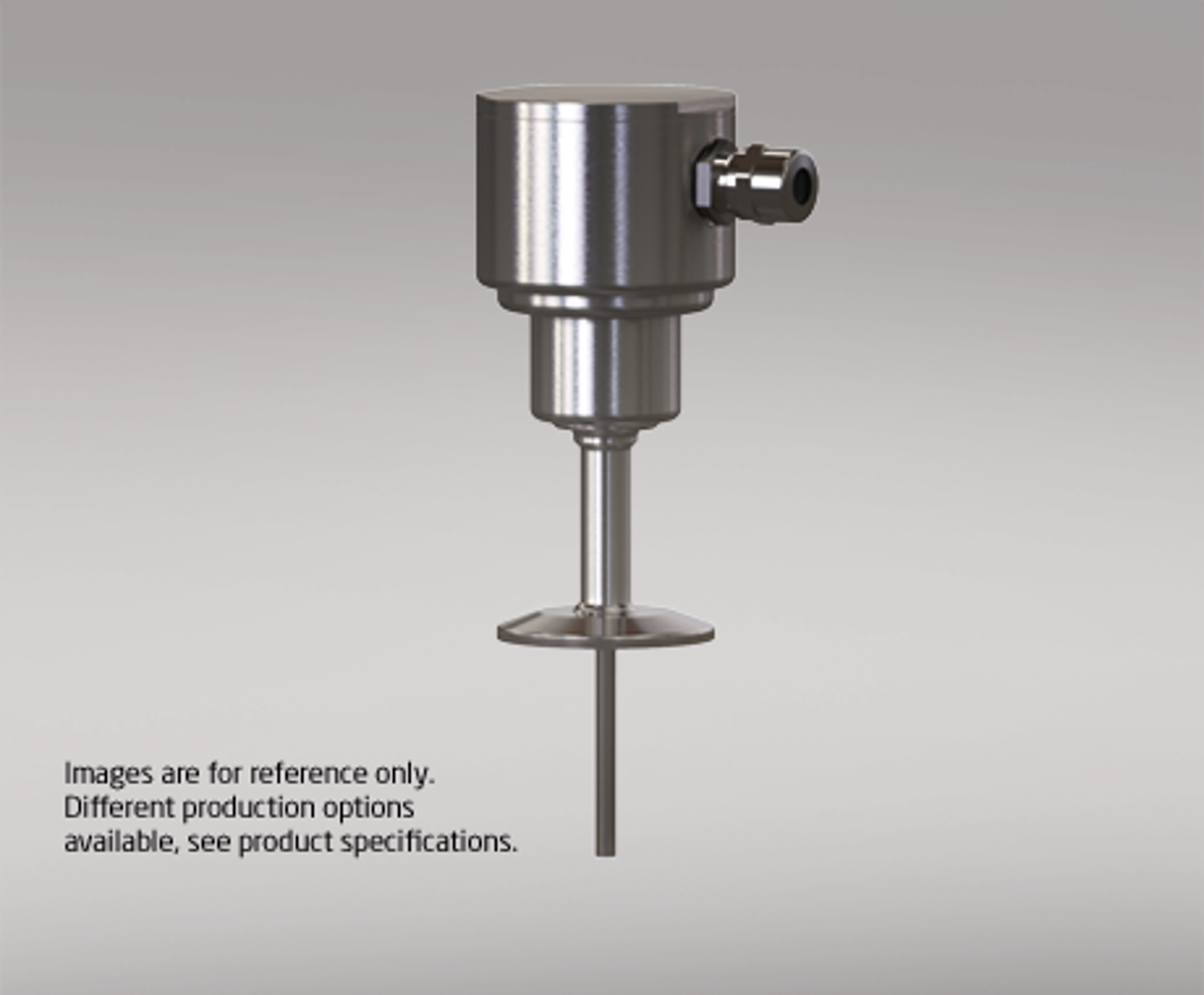

Hygienic stainless steel RTD sensor
PR 7810
- Hygienic applications
- 1½" tri-clamp 50.5 mm process connector
- Pt100 4-wire class B 1/10
- M12 / PG9 electrical connector
- Measuring range -50…250°C
- Stainless steel AISI 316L
Application
- The PR 7810 is designed for precise temperature measurement in hygienic and sanitary processes.
- It is ideal for use in the food and beverage industry, as well as the pharmaceutical, cosmetic, and chemical / technical industries, where strict hygiene requirements and reliable performance are essential.
- The sensor is suitable for installation in process lines, tanks, and vessels where cleanliness, accuracy, and serviceability are critical.
Technical characteristics
- The 7810 model is equipped with a Pt100 thin-film sensor element in accordance with IEC 60751, ensuring accurate, stable, and repeatable temperature measurements.
- It is designed to withstand mechanical and thermal stress according to DIN 43772, providing long-lasting performance in demanding process environments.
- The measuring insert is interchangeable, allowing for quick replacement or calibration without removing the complete sensor assembly from the process connection.
- A unique quick-lock bayonet coupling between the terminal head and thermowell enables the user to easily assemble and disassemble the sensor for maintenance, calibration, or cleaning tasks, minimizing process downtime and ensuring operational efficiency.
- The sensor is equipped with 1½” tri-clamp process connection.
- All media-contact parts are made from EN 1.4404 / AISI 316L stainless steel, mechanically polished to Ra <0.65 μm, meeting hygienic design standards and ensuring corrosion resistance in food and pharmaceutical applications.
- The sensor is designed to withstand media temperatures up to 250°C, as well as vibration and rapid temperature changes, ensuring a fast response time and stable measurement accuracy.
Electrical connection
- The terminal head is designed for easy access and secure connection, allowing quick disconnection of the measurement insert during service or calibration.
- The Pt100 sensor element with 4-wire configuration provides high accuracy and lead resistance compensation.
- Connection options include PG9 cable gland or M12 connector, depending on configuration.
Options
- Combine with the PR 5300 / PR 5400 series transmitter - we can deliver the transmitter pre-mounted to the sensor.
- Optional ceramic socket available for connection to externally installed transmitters.
- Material certificate, certificate of origin, certificate of conformity and calibration reports can be supplied when ordered together with the sensor.
Data sheet & Manuals
Supplementary documentation
Order form
Environmental Conditions
| Enclosure rating | IP67 |
| Measuring range | -196…250°C |
Mechanical specifications
| Insertion length L1 | 50 mm |
| Cooling neck extension L2 | 50 mm |
| Protective tube size Ø | Ø5 mm |
| Process connection A | 1½" Tri-Clamp 50.5 mm |
| Surface roughness Ra (wetted parts) | Mechanically polished Ra < 0.65 μm |
| Protective tube material (wetted parts) | EN 1.4404 / AISI 316L |
| Cable connection | PG9 Nickel-plated brass / M12 |
| Sensor head type | DIN 43729 form B |
| Sensor head material | EN 1.4404 / AISI 316L |
Electrical specifications
| Sensor element | Pt100 |
| Sensor element type / insulation | Interchangeable insert, thin film, mineral insulated |
| Sensor element wires | 4-wire |
| Accuracy class acc. to IEC 60751 | Class B 1/10 |
| Optional head transmitter | PR5300 / PR 5400 |
Observed authority requirements
| RoHS | 2011/65/EU |
