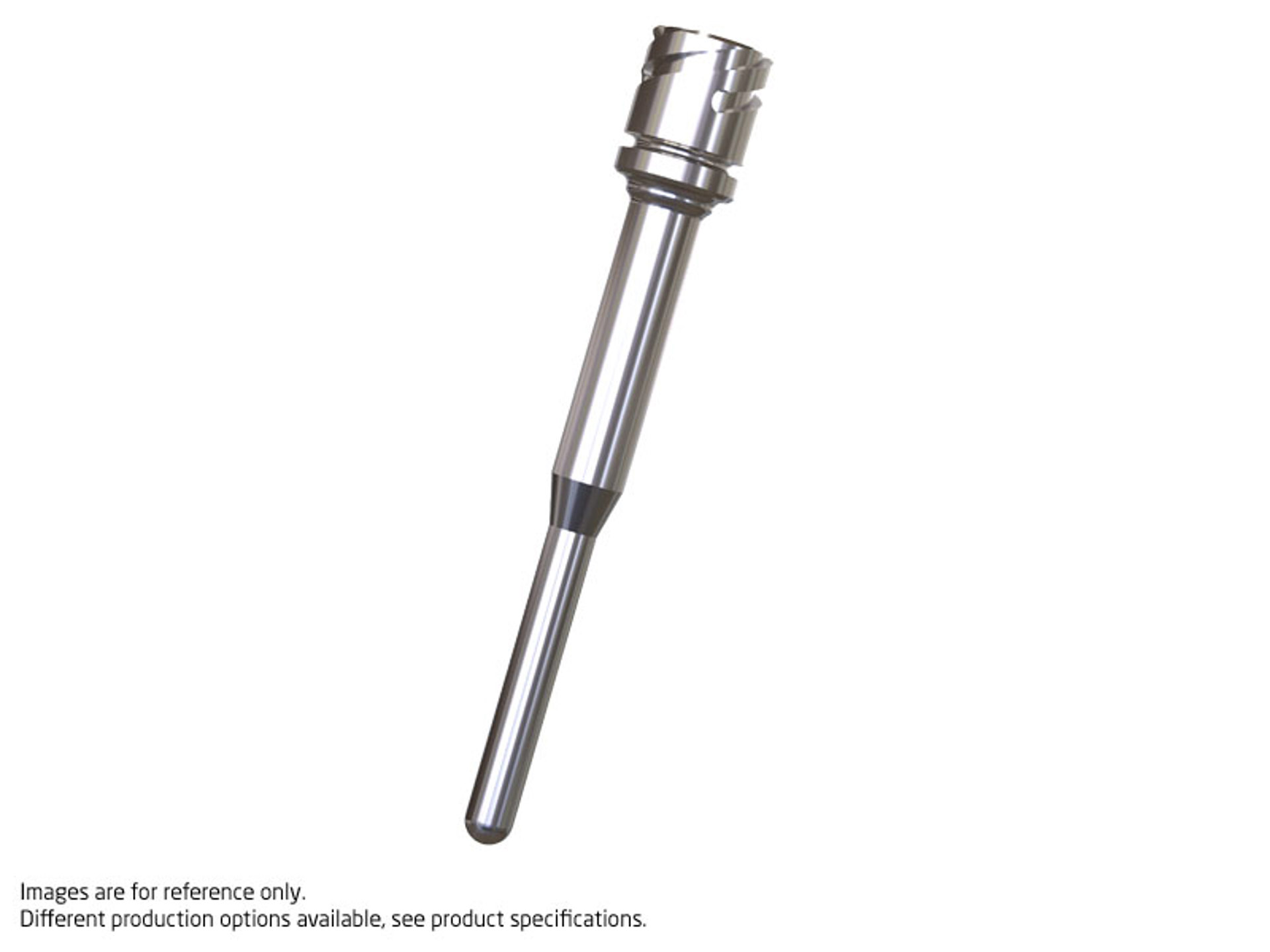

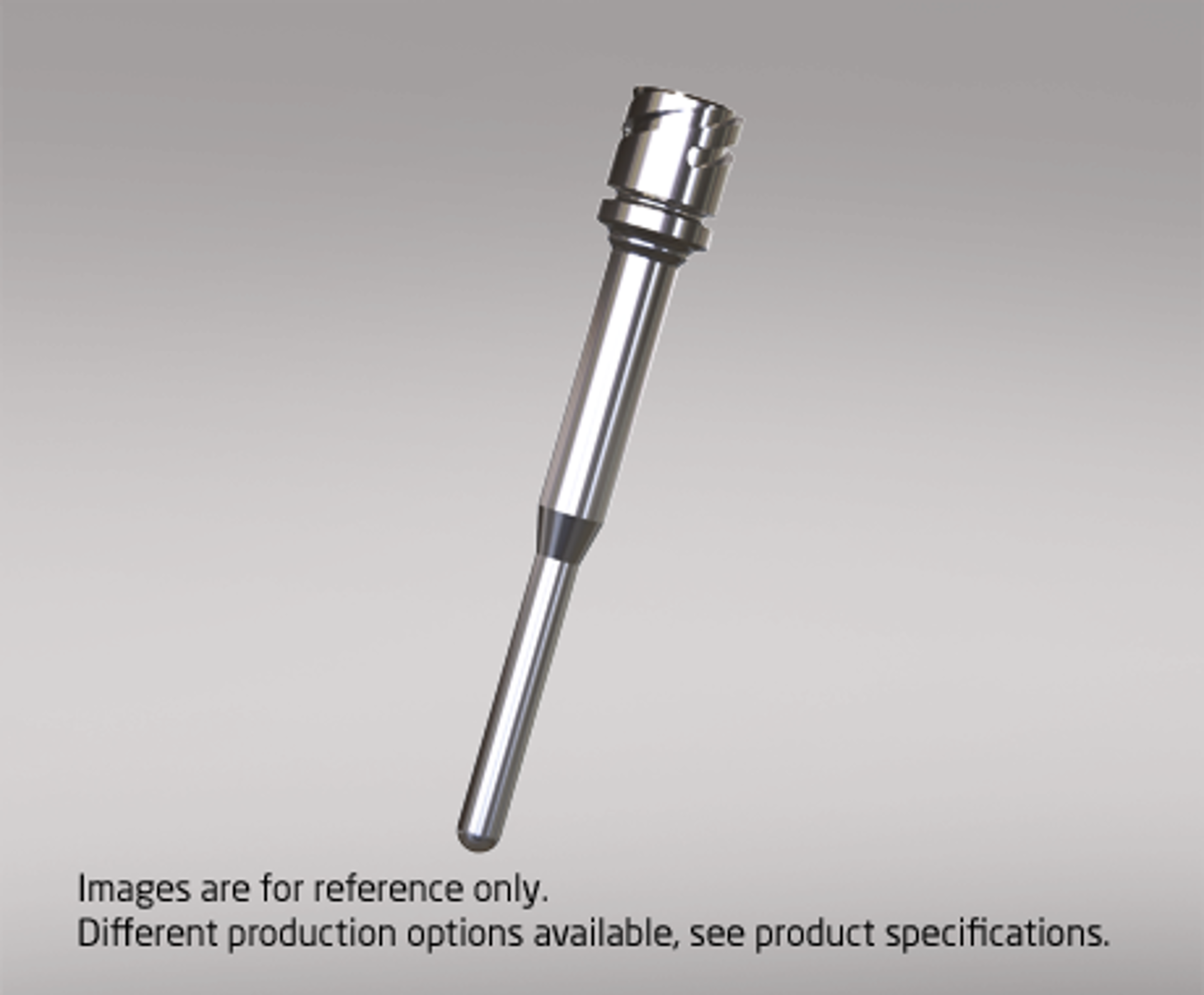

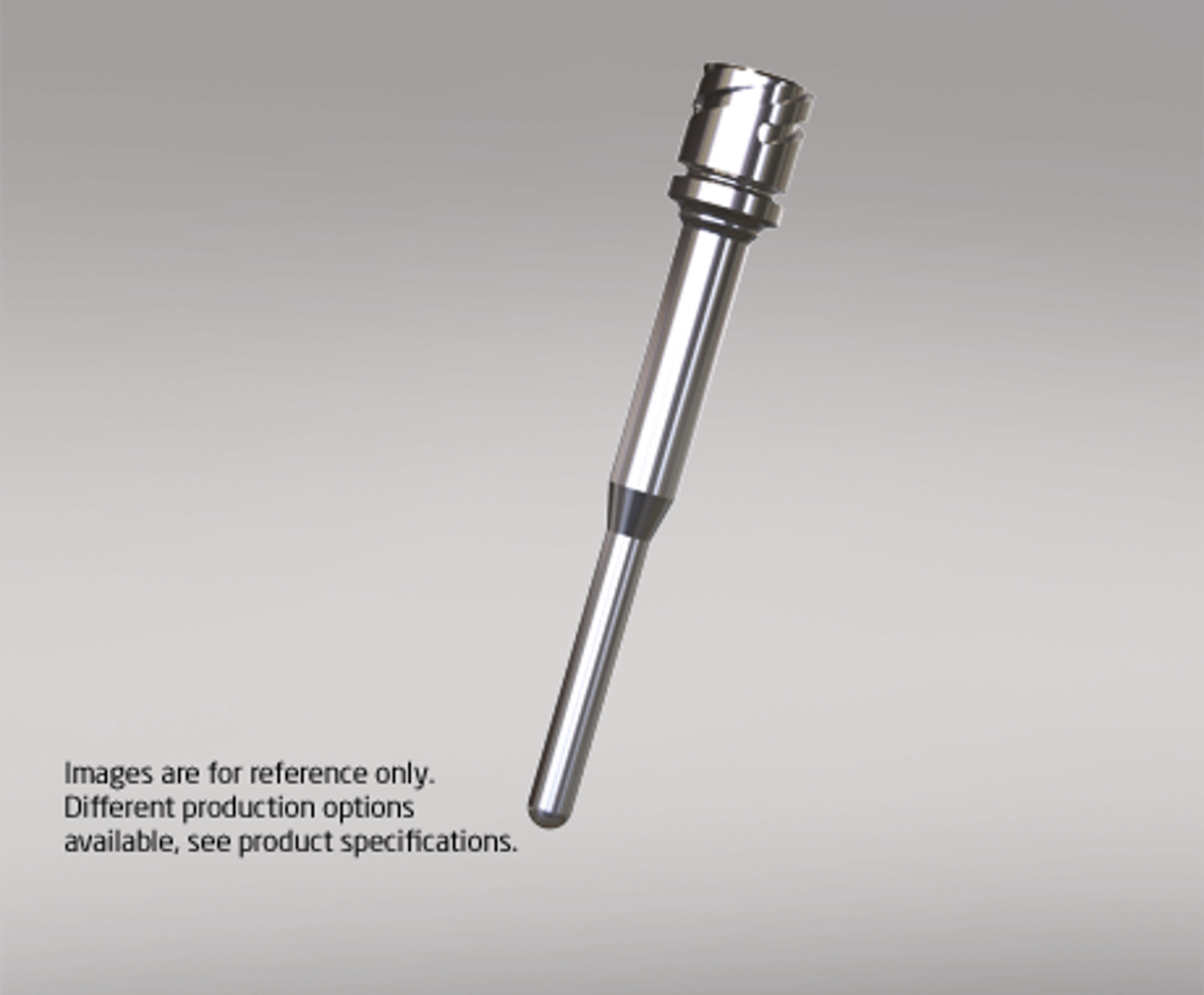

Thermowell with Quicklock
PR 7852
- Hygienic applications
- Stainless steel AISI 316TI
- Weld-in / Quicklock process connector
- Mechanically polished Ra < 0.65 μm
- Protective tube Ø10 / Ø15
Application
- The 7852 Thermowell is part of the 7850 system.
Options
- Refer to PR 7850 Hygienic stainless steel RTD sensor for complete sensor assembly.
Data sheet & Manuals
Supplementary documentation
Order form
Mechanical specifications
| Insertion length L1 | 65 mm |
| Cooling neck extension L2 | 70.5 mm |
| Protective tube size Ø | Ø10 or Ø15 mm |
| Process connection A | Quicklock / weld-in |
| Protective tube material (wetted parts) | EN 1.4571 / AISI 316Ti |
| Surface roughness Ra (wetted parts) | Mechanically polished Ra < 0.65 μm |
| Material traceability | Heat no. marking |
Observed authority requirements
| RoHS | 2011/65/EU |
