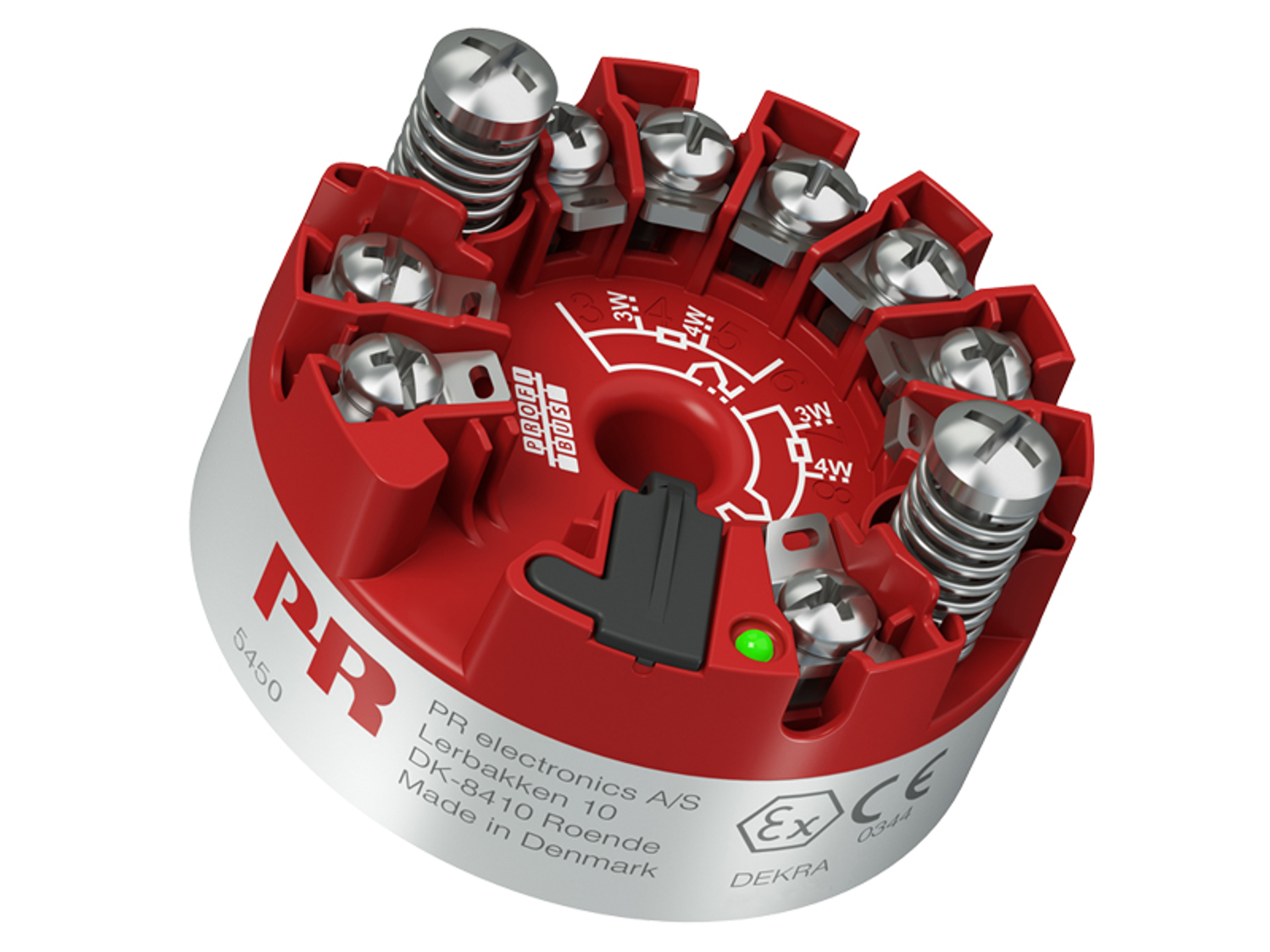

PROFIBUS PA temperature transmitter



5450A - Expected release ultimo August 2025



  • PROFIBUS PA profile 4.0
  • RTD, TC, potentiometer, linear resistance and bipolar mV input
  • Single or true dual inputs with sensor redundancy and drift detection
  • Easy Ex i deployment with conformity to FICSO IEC 60079-27
  • Accuracy from 0.04°C
  • 2.5 kVAC galvanic isolation
Ex Iec Iecex Zone2 CSA Pending Fmapprovedcus Zone2 Pending Inmetro Pending NEPSI Pending EAC Ex Pending Eac Pending CE
  1. Overview + -

  2. Technical details + -

  3. Order and delivery + -

  4. Why choose PR + -

Application

  • Temperature measurement of a wide range of TC and RTD types.
  • Conversion of wide span linear resistance and potentiometer inputs to PROFIBUS.
  • Conversion of bipolar mV signals to PROFIBUS.
  • Integration into asset management schemes.
  • Critical applications requiring superior accuracy and/or sensor redundancy and drift detection.

Technical characteristics

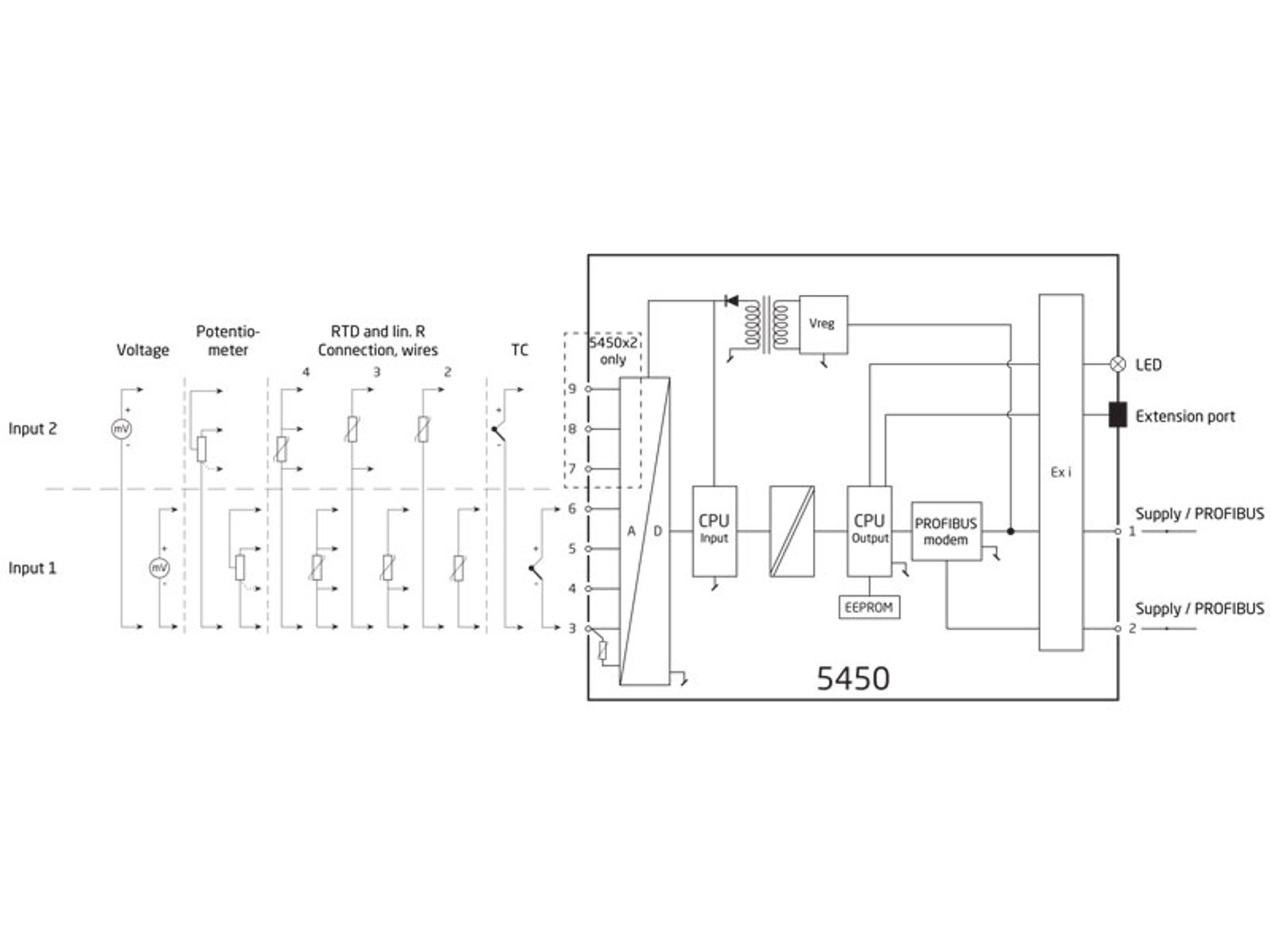

  • True dual input transmitter. High density 7-terminal design accepts the widest range of dual input combinations.
  • Sensor drift detection - alerts when sensor differential exceeds user-defined limits, for maintenance optimization.
  • Variable mapping for process data such as average, differential and min./max. tracking.
  • Groundbreaking digital and analog signal accuracy over full input span and ambient conditions.
  • Extensive sensor matching including Callendar Van Dusen and custom linearizations.
  • Programmable input limits with runtime metering ensure maximum process traceability and sensor out of range protection.
  • Meets NAMUR NE21, NE44, NE89 and NE107 compliant diagnostics information.

Programming

  • PROFIBUS PA functions and device-specific parameters are configured via fieldbus communication and the associated DD / DTM / GSD device drivers.

Mounting / installation

  • For DIN form B sensor head mounting.
  • Mounting in zone 2 and zone 22 / Class I, Division 2, Groups A, B, C, D.

Data sheet & Manuals


Data sheet

Manuals

Approvals & Certificates


ATEX certificate

IECEx certificate

Supplementary documentation


EU Declaration of Conformity

EMC data

PR default configurations

Safety note


Safety note

Environmental Conditions

Operating temperature -40°C to +80°C
Storage temperature -50°C to +85°C
Calibration temperature 23...25°C
Relative humidity < 99% RH (non-cond.)
Protection degree (encl./terminal) IP68 / IP00

Mechanical specifications

Dimensions Ø 44 x 21.45 mm
Center hole diameter Ø 6.35 mm / ¼ in
Weight approx. 50 g
Wire size 1 x 1.5 mm2 stranded wire
Stripping length 7 mm
Screw terminal torque 0.4 Nm
Vibration IEC 60068-2-6
2...25 Hz ±1.6 mm
25...100 Hz ±4 g

Common specifications

Supply

Supply voltage 9.0...32 VDC
Supply voltage in FISCO installations 9.0...17.5 VDC
Internal power dissipation < 352 mW

Isolation voltage

Isolation voltage, test / working 2.5 kVAC / 55 VAC

Response time

Response time < 400 ms
Programmable damping 0...60 s
Write protection Jumper
Warm-up time < 5 min.
Start-up time < 15 s
Programming PROFIBUS GSD, DD
Signal / noise ratio > 60 dB
Long-term stability, first year / 5 years ± 0.05% of reading / ± 0.10% of reading
Updating time, PROFIBUS < 100 ms
Signal dynamics, input 24 bit
Accuracy See manual for details
EMC immunity influence < ±0.1% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1%

Input specifications

RTD input

RTD type Pt10...10000, Ni10...10000, Cu5...1000
Permissible cable resistance per wire ≤ 50 Ω
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor current < 0.15 mA
Sensor error detection None, Shorted, Broken, Shorted or Broken

TC input

Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) Constant, internal or external via a Pt100 or Ni100 sensor
Sensor error detection None, Shorted, Broken, Shorted or Broken

Linear resistance input

Measurement range / min. range (span) 0 Ω...100 kΩ / 25 Ω
Permissible cable resistance per wire ≤ 50 Ω
Sensor current < 0.15 mA
Sensor error detection None, Broken

Potentiometer input

Potentiometer min....max. 10 Ω...100 kΩ
Measurement range / min. range (span) 0...100% / 10%
Permissible cable resistance per wire ≤ 50 Ω
Sensor current < 0.15 mA
Sensor error detection None, Shorted, Broken, Shorted or Broken

mV input

Measurement range -800...+800 mV (bipolar) -100...1700 mV
Min. measurement range (span) 2.5 mV
Input resistance 10 MΩ
Sensor error detection None, Broken

Output specifications

PROFIBUS PA connection

PROFIBUS PA protocol Profile A&B, ver. 4.0 (compatible with 3.02)
PROFIBUS PA protocol standard EN 50170 vol. 2
PROFIBUS PA address (at delivery) 126
PROFIBUS PA physical layer 2 x function blocks, 1 / 2 transducer block(s)
PROFIBUS PA termination 100 Ω +1 μF

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032

Approvals

ATEX DEKRA 24ATEX0007X
IECEx IECEx DEK. 24.0005X
CSA Pending
c FM us Pending
INMETRO Pending
NEPSI Pending
EAC Ex Pending
